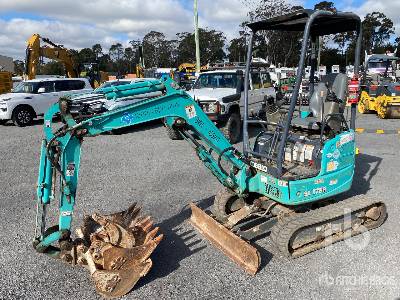

Kobelco SK17SR-5E Mini Excavator

Mini Excavator
Mini Excavator
Mini Excavator
Mini Excavator
Mini Excavator
Mini Excavator
Units

Dimensions

Boom/Stick Option (HEX) 1

A

Shipping Length of Unit

11.4ft in

C

Shipping Height of Unit

7.7ft in

I

Max Cutting Height

12.1ft in

J

Max Loading Height

8.81ft in

K

Max Reach Along Ground

12.2ft in

L

Max Vertical Wall Digging Depth

6.1ft in

M

Max Digging Depth

7.3ft in

Dimensions

B

Width to Outside of Tracks

3.1ft in

D

Length of Track on Ground

11.4ft in

E

Ground Clearance

0.7ft in

G

Height to Top of Cab

7.7ft in

H

Tail Swing Radius

2.1ft in

Undercarriage

N

Shoe Size

9.06in


Specifications

Engine

Number of Cylinders

3

Engine Model

YANMAR 3TNV74F-SPBV

Engine Type

Tier4 water-cooled 4-cycle 3-cylinder

Net Power

14.5hp

Power Measured @

2500rpm

Displacement

61.1cu in

Max Torque

36.3lb ft

Torque Measured @

1800rpm

Operational

Operating Weight

3671lb

Fuel Capacity

5.3gal

Traction force

4114.1lb

Swing Mechanism

Swing motor

Orbit motor

Swing Speed

9.5rpm

Undercarriage

Shoe Size

9.1in

Number of Track Rollers per Side

3

Ground Pressure

4.2psi

Max Travel Speed

2.7mph

Buckets

Reference Bucket Capacity

0.1yd3

Hydraulic System

Relief valve setting

2×20.6, 16.7×1, 2.9×1 (psi)

Max. oil flow

2×4.6(17.6), 1×3.5(13.2), 1×2.6(11.2) (gal/min (L/min))

Pump Type

Two variable displacement pumps + two gear pump

Boom/Stick Option (HEX) 1

Boom/Stick Option (HEX) 1

Mono Boom

Shipping Height of Unit

7.7ft in

Shipping Length of Unit

11.4ft in

Max Digging Depth

7.3ft in

Max Reach Along Ground

12.2ft in

Max Cutting Height

12.1ft in

Max Loading Height

8.8ft in

Max Vertical Wall Digging Depth

6.1ft in

Bucket Digging Force - SAE

2832.6lb

Bucket Digging Force - ISO

3394.7lb

Arm Crowding Force - SAE

1821lb

Arm Crowding Force - ISO

1910.9lb

Dimensions

Width to Outside of Tracks

3.1ft in

Height to Top of Cab

7.7ft in

Ground Clearance

0.7ft in

Tail Swing Radius

2.1ft in

Length of Track on Ground

11.4ft in
