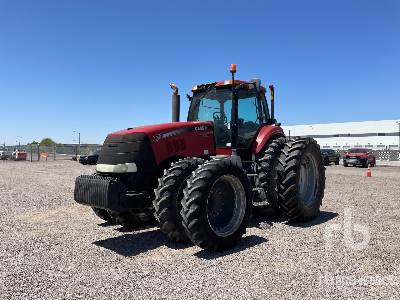

Case IH Magnum 275 4WD Tractor

4WD Tractor
4WD Tractor
4WD Tractor
4WD Tractor
4WD Tractor
4WD Tractor
Units

Dimensions

Dimensions

C

Height to Top of Cab

10.72ft in

D

Wheelbase

9.86in


Specifications

Engine

Number of Cylinders

6

PTO Power

225hp

Power Measured @

2000rpm

Torque Rise

51%

Displacement

543cu in

Aspiration

Wastegate Turbocharged / Air-to-Air

Operational

Operating Weight

32500lb

Hydraulic System Fluid Capacity

45.5gal

Fuel Capacity

180.2gal

Engine Oil Capacity

5.6gal

Cooling System Fluid Capacity

6.5gal

3 Point Hitch Type

Cat. III/IIIN

3 Point Hitch Lift Capacity @ 24 inches

15178.9lb

Alternator Supplied Amperage

150amps

Transmission

Transmission Type

18-speed full powershift

Number of Forward Gears

18

Number of Reverse Gears

4

Hydraulic System

Pump Flow Capacity

44gal/min

Number of Remote Control Valves

3

Axles

Axle Length

120.1in

Axle Diameter

4in

Dimensions

Wheelbase

9.9in

Height to Top of Cab

10.8ft in

Tire Size

front 420/90R30, rear 520/85R42
