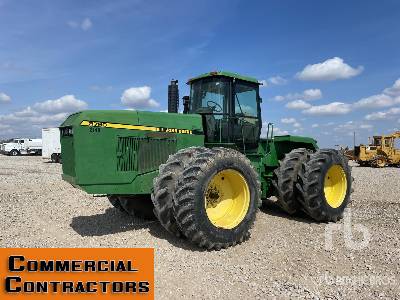

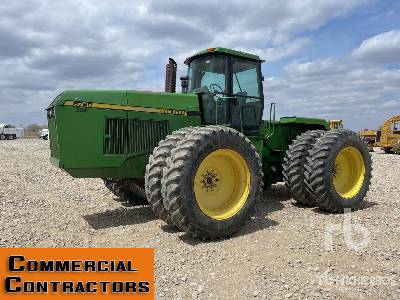

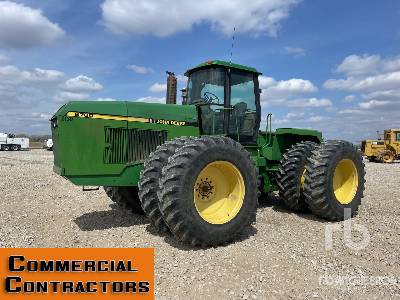

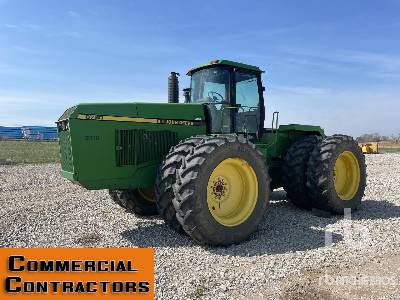

John Deere 8760 4WD Tractor
Units
Dimensions
Dimensions
A
Overall Length
268.9in
D
Wheelbase
133.86in
Specifications
Engine
Number Of Cylinders
6
Engine Make
John Deere
Gross Power
300hp
Pto Power
256hp
Power Measured @
2100rpm
Displacement
616.4cu in
Bore
5.2in
Stroke
5in
Aspiration
Turbocharged
Operational
Operating Weight
32095lb
Fuel Capacity
220gal
Hydraulic System Fluid Capacity
47gal
Cooling System Fluid Capacity
14.6gal
Front Tire Size
20.8R-38
3 Point Hitch Type
III
3 Point Hitch Lift Capacity @ 24 Inches
14983lb
Rear Tire Size
20.8R-38
Operating Voltage
12V
Alternator Supplied Amperage
120amps
Transmission
Transmission Type
Full power shift
Number Of Forward Gears
12
Number Of Reverse Gears
3
Max Speed - Forward
20.3mph
Max Speed - Reverse
6.1mph
Hydraulic System
Hydraulic System Type
Closed-center pressure compensated
Pump Flow Capacity
44.8gal/min
Number Of Remote Control Valves
3
