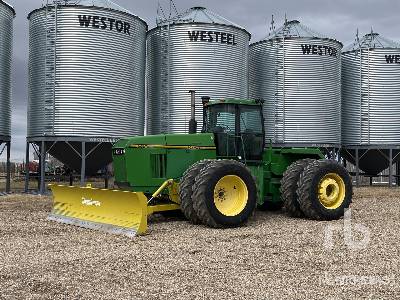

John Deere 8770 4WD Tractor
Units
Dimensions
Dimensions
A
Overall Length
268.9in
D
Wheelbase
133.86in
Front Axle Clearance
120in
Rear Axle Clearance
10ft in
Shipping Weight
31437.92lb
Specifications
Engine
Number Of Cylinders
6
Engine Make
John Deere
Gross Power
300hp
Pto Power
256hp
Power Measured @
2100rpm
Displacement
616.4cu in
Bore
5.2in
Stroke
5in
Aspiration
Turbocharged
Operational
Fuel Capacity
220gal
Operating Weight
32959.2lb
Hydraulic System Fluid Capacity
38gal
Cooling System Fluid Capacity
14.6gal
Engine Oil Capacity
8.5gal
Front Tire Size
24.5R-32
3 Point Hitch Type
III
3 Point Hitch Lift Capacity @ 24 Inches
14980lb
Rear Tire Size
24.5R-32
Operating Voltage
12V
Transmission
Transmission Type
Partially synchronized
Number Of Forward Gears
12
Number Of Reverse Gears
2
Hydraulic System
Hydraulic System Type
Closed-center pressure compensated
Pump Flow Capacity
38gal/min
Relief Valve Pressure
2530psi
Number Of Remote Control Valves
3 to 5
