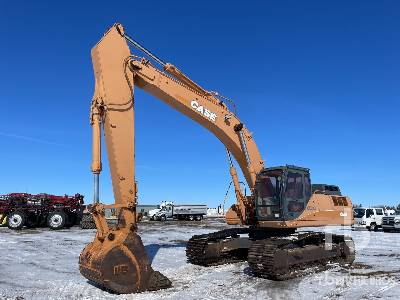

Case CX350D Hydraulic Excavator
Dimensions
Boom/Stick Option (Hex) 1
Max Vertical Wall Digging Depth
20.81ft in
Max Digging Depth
24.09ft in
Dump Height
285.04in
Mximum Dig Radius
439.77in
Bucket Rotation
173degrees
Boom/Stick Option (Hex) 1
10 ft 8 in (3.25 m) Arm
Dig Radius At Ground Line
4323.23in
Minimum Swing Radius
177.56in
Boom/Stick Option (Hex) 2
Boom/Stick Option (Hex) 2
8 ft 8 in (2.63 m) Arm
Minimum Swing Radius
177.56in
Dig Radius At Ground Line
411.42in
Bucket Rotation
173degrees
Maximum Reach Height
408.67in
Dump Height
279.93in
Maximum Dig Radius
419.3in
Boom/Stick Option (Hex) 3
Bucket Rotation
173degrees
Dig Radius At Ground Line
461.03in
Dump Height
296.46in
Boom/Stick Option (Hex) 3
13 ft 3 in (4.04 m) Arm
Maximum Reach Height
419.3in
Minimum Swing Radius
178.35in
Maximum Dig Radius
468.51in
Dimensions
Ground Clearance
1.55ft in
Tail Swing Radius
11.65ft in
Track Shoe Width
2.63ft in
Cab Height
125.2in
Center To Center – Idler To Sprocket
13.26ft in
Ground Pressure
7.5psi
Minimum Ground Clearance
18.51in
Overall Height
11.39ft in
Boom Length
0.03ft in
Undercarriage
Track Shoe Width
31.5in
Specifications
Engine
Emission Tier Level
Tier 4
Fuel Injection
Direct injection – electronic
Fuel Filter
Replaceable, full flow spin-on cartridge
Air Filter Type
Dry type element with warning restriction indicator
Number Of Cylinders
6
Engine Model
Isuzu 6 HK1X
Net Power
268hp
Power Measured @
1900rpm
Max Torque
4.1lb ft
Displacement
476cu in
Fuel Type
Requires ultra-low sulfur fuel B5 biodiesel tolerant
Bore
4.6in
Stroke
5in
Oil Filter
Replaceable, full flow spin-on cartridge
Capacities
Engine Oil W/ Filter Change
12.7gal
Swing Drive
1.4gal
Hydraulic Tank
46.3gal
Cooling System
10.1gal
Def Tank
40.2gal
Final Drive
2.6gal
Hydraulic System
92.5gal
Operational
Arm Breakout Force
40240.8lb
Operating Weight
82483.8lb
Arm Size
10662.8ft in
Performance
Lift Over End 10\' Radius - Lbs (Kg)
22839.9lb
Lift Over End Max. Reach
9832.7lb
Lift Over Side 10\' Radius
22839.9lb
Lift Over Side Max. Reach
8487.8lb
Swing Mechanism
Swing Speed
9.7rpm
Transmission
Max Speed
3.5mph
Weights
Counterweight
16314.3lb
Hydraulic System
Main Pump - Maximum Flow
128.4gal/min
System Relief Pressure
49.8psi
Brakes
Brakes Type
Mechanical disc
Service Brake
SAHR disc – each motor
Travel Control
Dual stage relief or counter balance design
