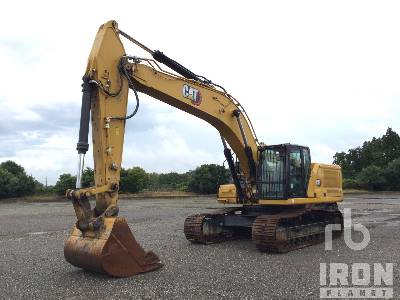

Caterpillar 336 GC Hydraulic Excavator
Units
Dimensions
Dimensions - Reach Boom - 6.5 M (21'4"); R3.2db (10'6") Stick; 1.88 M3 (2.46yd3) Hd Bucket
E
Ground Clearance
1.7ft in
H
Tail Swing Radius
11.6ft in
O
Counterweight Clearance
4.1ft in
F
Track Gauge
8.5ft in
Track Length To Center Of Rollers
11.8ft in
Transport Width - 600 Mm (24 In) Shoes
10.5ft in
Handrail Height
10.4ft in
Shipping Height - Top Of Cab
10.4ft in
Shipping Length
36.6ft in
Specifications
Engine
Displacement
433cu in
Bore
4in
Stroke
5in
Net Power - Sae J1349
259hp
Gross Power - Sae J1995
261hp
Engine Model
C7.1 ACERT
Net Flywheel Power
259hp
Engine Rpm - Operation
1900rpm
Engine Rpm - Travel
2000rpm
Operational
Operating Weight
74000lb
Weights
Note
Standard undercarriage, Reach boom, R2.8DB (9'2") stick, HD 1.88 m3 (2.46 yd3) bucket, and 600 mm (24") triple grouser shoes, 6.56 mt (14,500 lb) counterweight.
Hydraulic System
Maximum Pressure - Travel
5076 psi
Maximum Pressure - Swing
4061 psi
Maximum Pressure - Equipment - Implement
5076 psi
Main System - Maximum Flow - Implement
148 gal/min
Service Refill Capacities
Cooling System
4.9gal
Final Drive - Each
2.1gal
Hydraulic Tank
40.4gal
Hydraulic System - Including Tank
98.5gal
Fuel Tank Capacity
158.5gal
Swing Drive - Each
4.8gal
Engine Oil - With Filter
5.3gal
Swing
Swing Speed
8.8rpm
Maximum Swing Torque
80144lb ft
Working Ranges - Reach Boom - 6.5 M (21'4"); R3.2db (10'6") Stick; 1.88 M3 (2.46 Yd3) Hd Bucket
Bucket Digging Force - Iso
44350lb ft
Bucket Digging Force - Sae
38730lb ft
Maximum Cutting Height
33.8ft in
Maximum Depth Cut For 2440 Mm (8'0") Level Bottom
7360 mm
Maximum Digging Depth
24.7ft in
Maximum Loading Height
23.2ft in
Maximum Reach - Ground Level
36.3ft in
Maximum Vertical Wall Digging Depth
18.6ft in
Minimum Loading Height
8.5ft in
Stick Digging Force (Iso)
32150lb ft
Stick Digging Force (Sae)
32060lb ft
