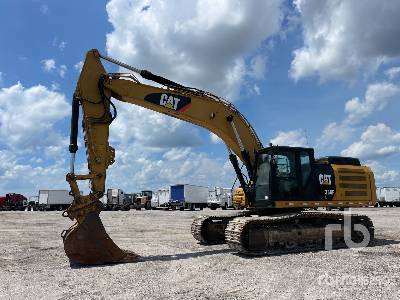

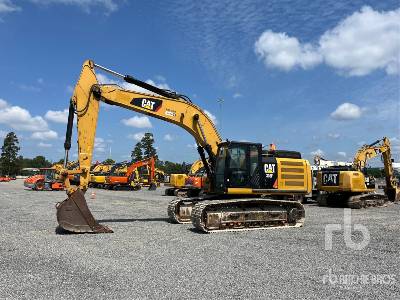

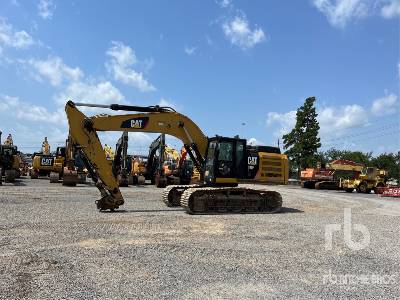

Caterpillar 336F L Hydraulic Excavator
Units
Specifications
Engine
Displacement
568cu in
Bore
4.6in
Stroke
5.9in
Net Power - Sae J1349
303hp
Gross Power - Sae J1995
322hp
Engine Model
Cat C9.3 (ATAAC)
Net Flywheel Power
303hp
Operational
Operating Weight
88400lb
Swing Mechanism
Swing Speed
8.9rpm
Swing Torque
80144lb ft
Weights
Maximum Weight
88400lb
Minimum Weight
80500lb
Hydraulic System
Pilot System - Maximum Flow
8 gal/min
Pilot System - Maximum Pressure
595 psi
Maximum Pressure - Travel
5076 psi
Maximum Pressure - Swing
4061 psi
Swing System - Maximum Flow
74 gal/min
Boom Cylinder - Bore
5.9in
Boom Cylinder - Stroke
56.7in
Stick Cylinder - Bore
6.7in
Stick Cylinder - Stroke
68.4in
Main System - Maximum Flow - Total
151 gal/min
Tb Family Bucket Cylinder - Stroke
53.4in
Tb Family Bucket Cylinder - Bore
6.3in
Maximum Pressure - Equipment - Heavy Lift
5511 psi
Maximum Pressure - Equipment - Normal
5076 psi
Db Family Bucket Cylinder - Bore
5.9in
Db Family Bucket Cylinder - Stroke
45.3in
Service Refill Capacities
Cooling System
15gal
Def Tank
11gal
Final Drive - Each
2gal
Hydraulic Tank
46gal
Hydraulic System - Including Tank
100gal
Fuel Tank Capacity
164gal
Swing Drive - Each
5gal
Engine Oil - With Filter
8gal
Standards
Brakes
ISO 10265 2008
Cab/Fogs
ISO 10262 1998
Sound Performance
Operator Noise - Sae J1166
71 dB(A)
Track
Number Of Track Rollers - Each Side - Long Undercarriage
9
Number Of Shoes - Each Side - Long Undercarriage
49
Number Of Carrier Rollers - Each Side - Long Undercarriage
2
Drive
Maximum Travel Speed
3mph
Maximum Drawbar Pull
66139lb
