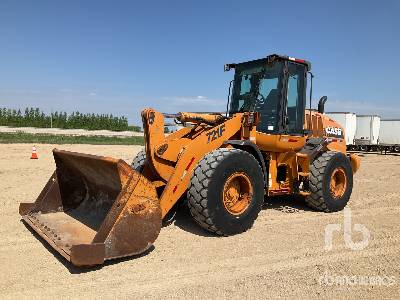

Case 621BXT Wheel Loader

Wheel Loader
Wheel Loader
Wheel Loader
Wheel Loader
Wheel Loader
Wheel Loader
MODEL.UNITS

Dimensions

Bucket

G

Dump Clearance At Max Raise

9.9ft in

Bucket Capacity - Heaped

2.97yd3

Bucket Capacity - Struck

2.54yd3

Bucket Width

8.59ft in

Dimensions

B

Width Over Tires

8ft in

C

Height To Top Of Cab

10.8ft in

D

Wheelbase

9.5ft in

F

Hinge Pin - Max Height

12.8ft in


Specifications

Engine

Engine Model

6T 590

Net Power

126hp

Gross Power

138hp

Power Measured @

2200rpm

Max Torque

443lb ft

Displacement

3.6cu in

Torque Measured @

1400rpm

Bore

4.1in

Stroke

4.8in

Operational

Operating Weight

58177.8lb

Fuel Capacity

51gal

Engine Oil Fluid Capacity

3.8gal

Cooling System Fluid Capacity

7gal

Transmission Fluid Capacity

5gal

Front Axle/Diff Fluid Capacity

5.5gal

Rear Axle/Diff Fluid Capacity

5.5gal

Transmission

Number Of Forward Gears

4

Number Of Reverse Gears

3

Max Speed - Forward

20.6mph

Max Speed - Reverse

15mph

Hydraulic System

Implement Pump Flow Ps

56.4gal/min

Steering System Relief Valve Setting

2550psi

Raise Time

5.7sec

Dump Time

1.7sec

Lower Time

5sec
