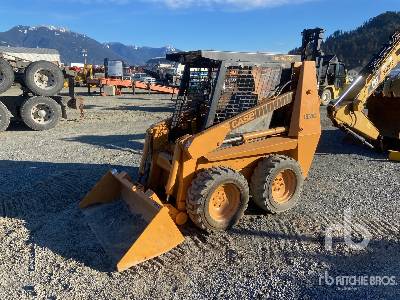

Case 410 Series III Skid Steer Loader

Skid Steer Loader
Skid Steer Loader
Skid Steer Loader
Skid Steer Loader
Skid Steer Loader
Skid Steer Loader
Units

Dimensions

Dimensions

A

Length with Bucket

10.27ft in

B

Width Over Tires

4.93ft in

C

Height to Top of Cab

6.57ft in

D

Wheelbase

3.45ft in

E

Ground Clearance

8.35in

F

Length w/o Bucket

8.17ft in

G

Clearance at Max Lift and Dump

7.52ft in

H

Reach at Max Lift and Dump

23.63in


Specifications

Engine

Number of Cylinders

4

Engine Make

2239

Engine Model

422T/M3 diesel Tier III certified

Gross Power

60.4hp

Net Power

56.4hp

Power Measured @

2900rpm

Displacement

134.3cu in

Aspiration

Turbocharged

Operational

Operational Weight

5430lb

Fuel Capacity

22.1gal

Cooling System Fluid Capacity

3.1gal

Engine Oil Fluid Capacity

2.8gal

Hydraulic System Fluid Capacity

13.3gal

Chain Box Fluid Capacity - each side

2.1gal

Operating Speed

6.5mph

Max Speed

6.5mph

Tire Size

10.00 x 16.5 8 ply

Operating Voltage

12V

Alternator Supplied Amperage

55amps

Loader

Breakout Force

3751

Operating Load Rating

1501.4lb

Tipping Angle

3000.5degrees

Bucket Capacity

0.5yd3

Hydraulic

Pump Type

Gear

Pump Flow Capacity

19.5gal/min

Relief Valve Pressure

3050psi

Dimensions

Length with Bucket

10.3ft in

Length w/o Bucket

8.2ft in

Width Over Tires

5ft in

Height to Top of Cab

6.6ft in

Clearance at Max Lift and Dump

7.6ft in

Wheelbase

3.5ft in

Ground Clearance

8.4in

Reach at Max Lift and Dump

23.7in

Turning Radius from Center - machine rear

54in

Turning Radius from Center - inc bucket

73.4in
