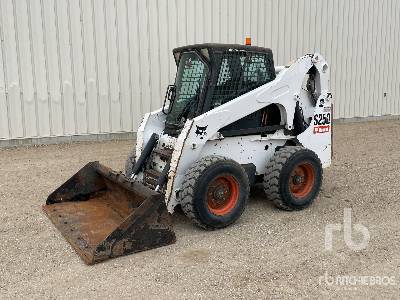

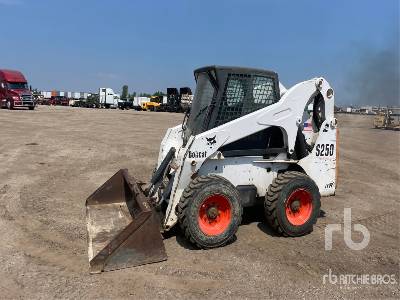

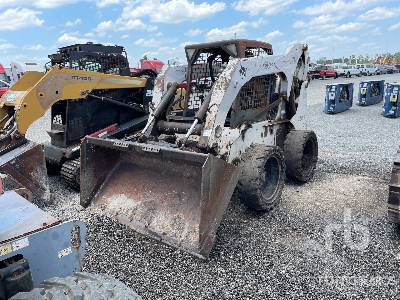

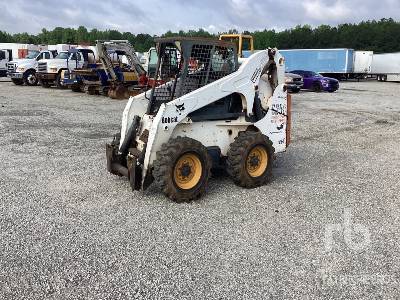

Bobcat S250 Skid Steer Loader

Skid Steer Loader
Skid Steer Loader
Skid Steer Loader
Skid Steer Loader
Skid Steer Loader
Skid Steer Loader
Units

Dimensions

Dimensions

A

Length with Bucket

11.91ft in

B

Width Over Tires

6ft in

C

Height to Top of Cab

6.74ft in

D

Wheelbase

4.02ft in

F

Length w/o Bucket

9.54ft in

G

Clearance at Max Lift and Dump

8.29ft in

H

Reach at Max Lift and Dump

21.6in


Specifications

Engine

Number of Cylinders

4

Engine Make

2334

Engine Model

V3300-DI-T

Gross Power

75hp

Power Measured @

2800rpm

Displacement

201.4cu in

Operational

Operational Weight

7825lb

Operating Speed

6.9mph

Max Speed

12mph

Loader

Operating Load Rating

2500lb

Tipping Angle

5661degrees

Bucket Capacity

0.6yd3

Hydraulic

Pump Flow Capacity

20.7gal/min

Dimensions

Length with Bucket

12ft in

Length w/o Bucket

9.6ft in

Width Over Tires

6ft in

Height to Top of Cab

6.8ft in

Clearance at Max Lift and Dump

8.3ft in

Wheelbase

4.1ft in

Reach at Max Lift and Dump

21.6in

Turning Radius from Center - machine rear

84.2in
