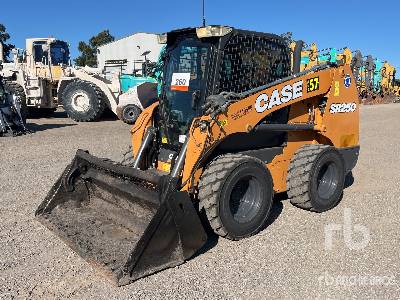

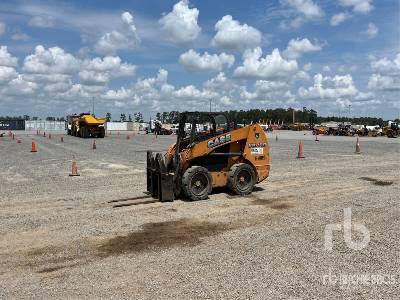

Case SR250 Skid Steer Loader

Case SR250 Skid Steer Loader Specs front
Case SR250 Skid Steer Loader Specs front
Case SR250 Skid Steer Loader Specs side
Case SR250 Skid Steer Loader Specs side
Case SR250 Skid Steer Loader Specs back
Case SR250 Skid Steer Loader Specs back
Units

Dimensions

Dimensions

A

Length with Bucket

11.82 ft in

B

Width Over Tires

5.91 ft in

C

Height to Top of Cab

6.57 ft in

D

Wheelbase

4.27 ft in

E

Ground Clearance

8 in

F

Length w/o Bucket

9.85 ft in

G

Clearance at Max Lift and Dump

8.54 ft in

H

Reach at Max Lift and Dump

19.5 in


Specifications

Engine

Number of Cylinders

4

Engine Make

2239

Engine Model

432T/M3

Gross Power

90 hp

Net Power

84 hp

Power Measured @

2500 rpm

Displacement

195 cu in

Max Torque

251 lb ft

Torque Measured @

1400 rpm

Aspiration

Turbocharged

Operational

Operational Weight

7700 lb

Fuel Capacity

25.5 gal

Engine Oil Fluid Capacity

2.7 gal

Hydraulic System Fluid Capacity

6 gal

Chain Box Fluid Capacity - each side

2 gal

Operating Speed

7.2 mph

Max Speed

11.9 mph

Tire Size

12 x 16.5

Operating Voltage

12 V

Alternator Supplied Amperage

95 amps

Loader

Operating Load Rating

2500 lb

Tipping Angle

5000 degrees

Bucket Capacity

0.7 yd3

Bucket Width

72 in

Hydraulic

Pump Type

Gear

Pump Flow Capacity

12.2 gal/min

Relief Valve Pressure

3000 psi

Dimensions

Length with Bucket

11.9 ft in

Length w/o Bucket

9.9 ft in

Width Over Tires

6 ft in

Height to Top of Cab

6.6 ft in

Clearance at Max Lift and Dump

8.6 ft in

Wheelbase

4.3 ft in

Ground Clearance

8 in

Reach at Max Lift and Dump

19.5 in

Turning Radius from Center - machine rear

70.4 in

Turning Radius from Center - inc bucket

84.2 in
