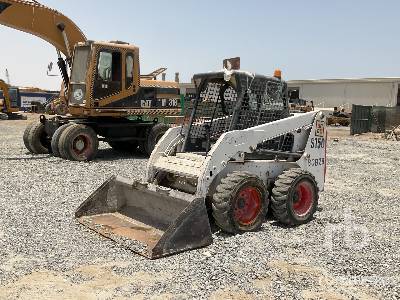

Bobcat S150 Skid Steer Loader

Bobcat S150 Skid Steer Loader Specs front
Bobcat S150 Skid Steer Loader Specs front
Bobcat S150 Skid Steer Loader Specs side
Bobcat S150 Skid Steer Loader Specs side
Bobcat S150 Skid Steer Loader Specs back
Bobcat S150 Skid Steer Loader Specs back
Units

Dimensions

Dimensions

A

Length with Bucket

10.86 ft in

B

Width Over Tires

5.5 ft in

C

Height to Top of Cab

6.36 ft in

D

Wheelbase

3.38 ft in

E

Ground Clearance

7.52 in

F

Length w/o Bucket

8.5 ft in

G

Clearance at Max Lift and Dump

7.21 ft in

H

Reach at Max Lift and Dump

18.15 in


Specifications

Engine

Number of Cylinders

4

Engine Make

2334

Engine Model

V2203-M-DI-E2B-BC-3

Gross Power

46 hp

Power Measured @

2800 rpm

Displacement

134.3 cu in

Operational

Operational Weight

5935 lb

Fuel Capacity

24.1 gal

Operating Speed

7.3 mph

Max Speed

7.3 mph

Loader

Operating Load Rating

1500 lb

Tipping Angle

3101 degrees

Bucket Capacity

0.5 yd3

Hydraulic

Pump Flow Capacity

16.9 gal/min

Relief Valve Pressure

3300 psi

Dimensions

Length with Bucket

10.9 ft in

Length w/o Bucket

8.5 ft in

Width Over Tires

5.5 ft in

Height to Top of Cab

6.4 ft in

Clearance at Max Lift and Dump

7.3 ft in

Wheelbase

3.4 ft in

Ground Clearance

7.6 in

Reach at Max Lift and Dump

18.2 in

Turning Radius from Center - machine rear

82.4 in
