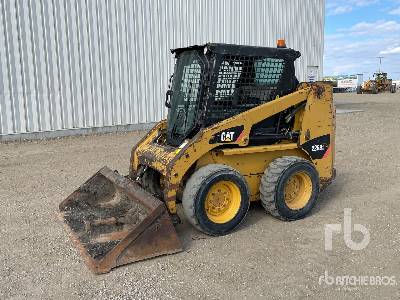

Caterpillar 226B Skid Steer Loader

Caterpillar 226B Skid Steer Loader Specs front
Caterpillar 226B Skid Steer Loader Specs front
Caterpillar 226B Skid Steer Loader Specs side
Caterpillar 226B Skid Steer Loader Specs side
Caterpillar 226B Skid Steer Loader Specs back
Caterpillar 226B Skid Steer Loader Specs back
Units

Dimensions

Dimensions

A

Length with Bucket

10.61 ft in

B

Width Over Tires

5.01 ft in

C

Height to Top of Cab

6.4 ft in

D

Wheelbase

3.24 ft in

E

Ground Clearance

7.68 in

F

Length w/o Bucket

8.27 ft in

G

Clearance at Max Lift and Dump

7.12 ft in

H

Reach at Max Lift and Dump

19.89 in


Specifications

Engine

Engine Make

2236

Engine Model

3024C T

Gross Power

61.7 hp

Net Power

57.7 hp

Aspiration

turbocharged

Operational

Operational Weight

5833.5 lb

Fuel Capacity

17.2 gal

Cooling System Fluid Capacity

2.7 gal

Engine Oil Fluid Capacity

2.2 gal

Hydraulic System Fluid Capacity

14.6 gal

Chain Box Fluid Capacity - each side

1.6 gal

Max Speed

7.9 mph

Tire Size

10x16.5 6PR

Operating Voltage

12 V

Alternator Supplied Amperage

85 amps

Loader

Breakout Force

4083

Operating Load Rating

1499.2 lb

Tipping Angle

2998.3 degrees

Hydraulic

Pump Flow Capacity

15.9 gal/min

Relief Valve Pressure

3335.9 psi

Dimensions

Length with Bucket

10.7 ft in

Length w/o Bucket

8.3 ft in

Width Over Tires

5.1 ft in

Height to Top of Cab

6.4 ft in

Clearance at Max Lift and Dump

7.2 ft in

Wheelbase

3.3 ft in

Ground Clearance

7.7 in

Reach at Max Lift and Dump

19.9 in

Turning Radius from Center - machine rear

58.5 in

Turning Radius from Center - inc bucket

76.4 in


Compare similar models

Manufacturer / Model

Net Power

Operational Weight

Operating Load Rating

Net Power

57 hp

Operational Weight

5822 lb

Operating Load Rating

1500 lb

Net Power

56 hp

Operational Weight

5822 lb

Operating Load Rating

1500 lb

Net Power

56 hp

Operational Weight

5716 lb

Operating Load Rating

1500 lb
