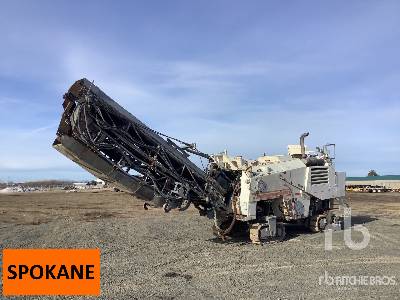

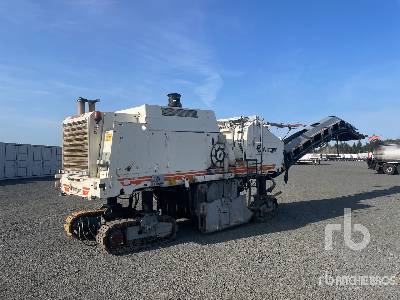

Wirtgen W130F Cold Planer

Cold Planer
Cold Planer
Cold Planer
Cold Planer
Cold Planer
Cold Planer
Units

Dimensions

Conveyor System

H

Discharge Conveyor Width

23.63in

Dimensions

A

Operating Length

41.18ft in

B

Shipping Width

9.36ft in

C

Shipping Height

10.18ft in

D

Shipping Length

19.36ft in

E

Max Operating Height

18.05ft in


Specifications

Engine

Number of Cylinders

6

Engine Make

2347

Engine Model

QSC 8.3

Gross Power

304hp

Net Power

280hp

Power Measured @

2100rpm

Displacement

506.5cu in

Operational

Operating Weight - Full Load

48722.2lb

Shipping Weight - Empty

44313lb

Fuel Capacity

163.8gal

Hydraulic System Fluid Capacity

34.4gal

Water Spray System Fluid Capacity

369.9gal

Operational Voltage

24V

Operating Speed

105ft/min

Travel Speed

3.3mph

Rotary Cutter

Cutting Width

4.3ft in

Cutting Depth

12.6in

Cutter Diameter

38.6in

Number of Tools

121

Tool Spacing

0.6in

Conveyor System

Collecting Conveyor Width

25.6in

Discharge Conveyor Width

23.7in

Discharge Conveyor Swing (R/L)

36degrees

Tracks

Number of Track Units

4

Front Track Length

4.4ft in

Front Track Width

10.3in

Rear Track Length

4.4ft in

Rear Track Width

10.3in

Dimensions

Operating Length

41.2ft in

Shipping Length

19.4ft in

Shipping Width

9.4ft in

Shipping Height

10.2ft in

Max Operating Height

18.1ft in


Compare similar models

Manufacturer / Model

Net Power

Operating Weight - Full Load

Cutting Width

Net Power

280 hp

Operating Weight - Full Load

47840.4 lb

Cutting Width

4 ft in
`
