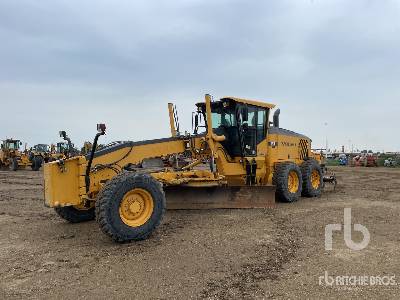

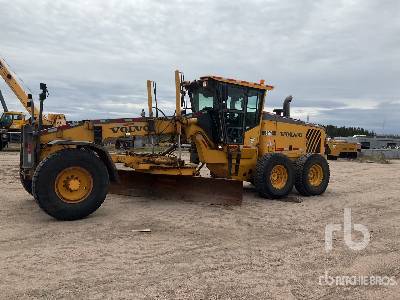

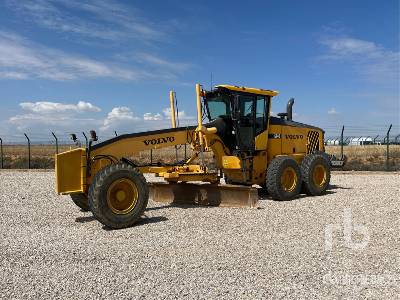

Volvo G990 Motor Grader
Units
Dimensions
Dimensions
A
Overall Length
31.75ft in
B
Width Over Tires
9.08ft in
D
Wheelbase
21.75ft in
H
Blade Base
9.5ft in
Height To Top Of Isomount Cab
10.58ft in
Specifications
Engine
Number Of Cylinders
6
Engine Make
2244
Engine Model
D9B
Power Measured @
1700rpm
Torque Measured @
1550rpm
Max Power
277hp
Net Power Gears 7-8
277hp
Net Torque Gears 7-8
929lb ft
Displacement
573cu in
Aspiration
Turbocharged, Aftercooled
Operational
Std Operation Weight - Front Axle
13670lb
Hydraulic System Fluid Capacity
24gal
Std Operation Weight - Rear Axle
35050lb
Std Operation Weight - Total
48720lb
Max Operation Weight - Front Axle
18500lb
Max Operation Weight - Rear Axle
42000lb
Max Operation Weight - Total
60000lb
Oil System Fluid Capacity
10.4gal
Fuel Capacity
132gal
Cooling System Fluid Capacity
12.4gal
Transmission Fluid Capacity
16gal
Tandem Case Fluid Capacity (Each)
27.7gal
Tire Size
16:00 x 24, G-2
Operating Voltage
24V
Alternator Supplied Amperage
80amps
Steering
Articulation Angle
21degrees
Turning Radius
26.8ft in
Transmission
Transmission Type
HTE 840, Fully sequential, direct drive, Volvo powershift transmission
Number Of Gears - Forward
8
Number Of Gears - Reverse
4
Max Speed - Forward
28.1mph
Max Speed - Reverse
19.8mph
Front Axle
Wheel Lean
18degrees
Oscillation - Total
16degrees
Ground Clearance
24.2ft in
Moldboard
Moldboard Width
14ft in
Moldboard Height
31in
Moldboard Thickness
1in
Max Depth Of Cut
32.5in
Side Shift Left
26.5in
Side Shift Right
26.5in
Blade Pull At Max Weight
37800lb
Blade Down Pressure
24457lb
Hydraulic System
Pump Type
Axial piston pump
Pump Flow
55gal/min
Relief Valve Pressure
3000psi
Circle
Diameter
64in
Rotation
360degrees
Shift Left
30in
Shift Right
29.5in
Max Reach Outside Tires - Left
89in
Max Reach Outside Tires - Right
89in
Blade Tip Angle - Front
46degrees
Blade Tip Angle - Rear
13degrees
