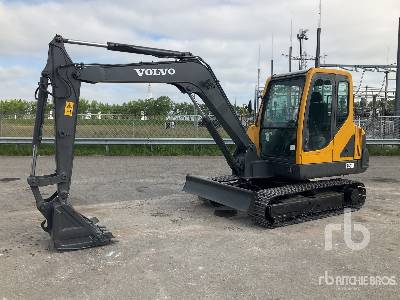

Volvo EC55B Pro Midi Excavator

Volvo EC55B Pro Midi Excavator Specs front
Volvo EC55B Pro Midi Excavator Specs front
Volvo EC55B Pro Midi Excavator Specs side
Volvo EC55B Pro Midi Excavator Specs side
Volvo EC55B Pro Midi Excavator Specs extended
Volvo EC55B Pro Midi Excavator Specs extended
Units

Dimensions

Boom/Stick Option (HEX) 1

A

Shipping Length of Unit

19.36 ft in

C

Shipping Height of Unit

8.4 ft in

I

Max Cutting Height

18.94 ft in

J

Max Loading Height

13.42 ft in

K

Max Reach Along Ground

19.62 ft in

L

Max Vertical Wall Digging Depth

8.6 ft in

M

Max Digging Depth

12.54 ft in

Boom/Stick Option (HEX) 2

A

Shipping Length of Unit

19.36 ft in

C

Shipping Height of Unit

8.4 ft in

I

Max Cutting Height

19.72 ft in

J

Max Loading Height

14.18 ft in

K

Max Reach Along Ground

20.74 ft in

L

Max Vertical Wall Digging Depth

9.81 ft in

M

Max Digging Depth

13.72 ft in

Dimensions

B

Width to Outside of Tracks

6.3 ft in

D

Length of Track on Ground

6.4 ft in

E

Ground Clearance

1.25 ft in

G

Height to Top of Cab

8.4 ft in

H

Tail Swing Radius

5.42 ft in

Undercarriage

F

Track Gauge

4.99 ft in

N

Shoe Size

15.75 in


Specifications

Engine

Number of Cylinders

4

Engine Make

2244

Engine Model

D3.1A

Gross Power

52 hp

Net Power

49.8 hp

Power Measured @

2100 rpm

Displacement

186.3 cu in

Max Torque

155 lb ft

Torque Measured @

1600 rpm

Operational

Operating Weight

12125 lb

Fuel Capacity

23.8 gal

Cooling System Fluid Capacity

3 gal

Hydraulic System Fluid Capacity

34.4 gal

Engine Oil Capacity

2.7 gal

Operating Voltage

12 V

Alternator Supplied Amperage

55 amps

Hydraulic System Relief Valve Pressure

3190 psi

Hydraulic Pump Flow Capacity

27.6 gal/min

Swing Mechanism

Swing Speed

9.4 rpm

Undercarriage

Shoe Size

15.8 in

Number of Carrier Rollers per Side

1

Number of Track Rollers per Side

5

Max Travel Speed

2.5 mph

Track Gauge

5 ft in

Buckets

Reference Bucket Capacity

0.2 yd3

Minimum Bucket Capacity

0.1 yd3

Maximum Bucket Capacity

0.4 yd3

Boom/Stick Option (HEX) 1

Boom/Stick Option (HEX) 1

Boom 9'10" (3030mm)/Stick 5'0" (1540mm)

Shipping Height of Unit

8.4 ft in

Shipping Length of Unit

19.4 ft in

Max Digging Depth

12.6 ft in

Max Reach Along Ground

19.7 ft in

Max Cutting Height

19 ft in

Max Loading Height

13.5 ft in

Max Vertical Wall Digging Depth

8.6 ft in

Boom/Stick Option (HEX) 2

Boom/Stick Option (HEX) 2

Boom 9'10" (3030mm)/Stick 6'3" (1900mm)

Shipping Height of Unit

8.4 ft in

Shipping Length of Unit

19.4 ft in

Max Digging Depth

13.8 ft in

Max Reach Along Ground

20.8 ft in

Max Cutting Height

19.8 ft in

Max Loading Height

14.2 ft in

Max Vertical Wall Digging Depth

9.9 ft in

Dimensions

Width to Outside of Tracks

6.3 ft in

Height to Top of Cab

8.4 ft in

Ground Clearance

1.3 ft in

Removal Counterweight Clearance

2.3 ft in

Tail Swing Radius

5.5 ft in

Length of Track on Ground

6.4 ft in
