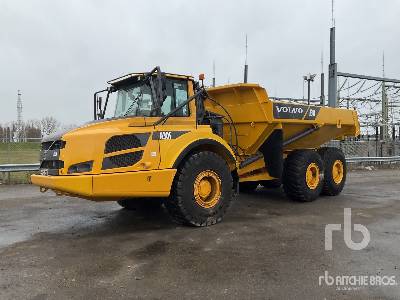

Volvo BM A30 6x6 Articulated Dump Truck
Units
Dimensions
Dimensions
A
Overall Length
33.47ft in
B
Overall Width
9.78ft in
C
Overall Height
11.19ft in
D
Wheelbase
13.7ft in
E
Ground Clearance
1.6ft in
F
Dump Height
21.31ft in
G
Dump Ground Clearance
1.95ft in
Dump
H
Dump Angle
70degrees
Lower Time
13sec
Rated Payload
59524.81lb
Capacity - Struck
16.88yd3
Raise Time
14sec
Capacity - Heaped
21.59yd3
Specifications
Engine
Number Of Cylinders
6
Engine Make
2244
Engine Model
TD 102KH
Gross Power
287hp
Net Power
285hp
Power Measured @
2200rpm
Max Torque
848.2lb ft
Torque Measured @
1400rpm
Aspiration
Turbocharged, intercooled
Displacement
585.9cu in
Operational
Fuel Capacity
95.2gal
Hydraulic System Fluid Capacity
51.3gal
Cooling System Fluid Capacity
13.8gal
Engine Oil Capacity
6.1gal
Transmission Fluid Capacity
9.3gal
Operating Voltage
24V
Tire Size
30/65R25
Transmission
Transmission Type
Fully automatic planetary transmission
Number Of Forward Gears
6
Number Of Reverse Gears
2
Max Speed
32.7mph
Weights
Front Axle - Empty
24912.3lb
Rear Axle - Empty
21164.4lb
Front Axle - Loaded
33179.6%
Rear Axle - Loaded
72421.9lb
Total Empty
46076.7lb
Total Loaded
105601.5lb
