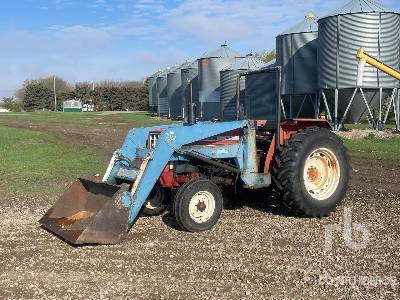

Ursus 4512 2WD Tractor
Units
Dimensions
Dimensions
A
Overall Length
12.39in
D
Wheelbase
7.4ft in
B
Overall Width
6.34ft in
Height With Rops
8.31ft in
Specifications
Engine
Number Of Cylinders
4
Engine Make
2441
Engine Model
4410
Gross Power
68.7hp
Pto Power
59hp
Power Measured @
2000rpm
Max Torque
197lb ft
Torque Measured @
1500rpm
Displacement
248.3cu in
Operational
Operating Weight
6349.4lb
Fuel Capacity
21.2gal
Hydraulic System Fluid Capacity
11.1gal
Cooling System Fluid Capacity
3.9gal
Engine Oil Capacity
1.9gal
3 Point Hitch Lift Capacity @ 24 Inches
5291.1lb
Tire Size Front - 2wd / 4wd
7.50-16 6PR
Rear Tires Size 2wd/4wd
16.9R30
Operating Voltage
12V
Fuel Usage @ 75% Load, Full Rpm
216gal/hour
Alternator Supplied Amperage
55amps
Transmission
Transmission Type
sliding gears
Number Of Forward Gears
8
Number Of Reverse Gears
2
Max Speed
17.1mph
Hydraulic System
Relief Valve Setting
2320.7psi
Pump Flow Capacity
7gal/min
