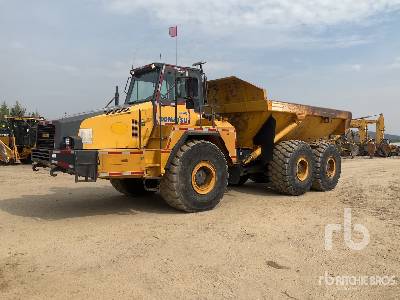

Komatsu HM400-2 Articulated Dump Truck

Articulated Dump Truck
Articulated Dump Truck
Articulated Dump Truck
Articulated Dump Truck
Articulated Dump Truck
Articulated Dump Truck
Units

Dimensions

Dimensions

A

Overall Length

37.08 ft in

B

Overall Width

11.33 ft in

C

Overall Height

12.17 ft in

D

Wheelbase

17.5 ft in

E

Ground Clearance

2 ft in

F

Dump Height

23.42 ft in

G

Dump Ground Clearance

2.33 ft in

Dump

H

Dump Angle

70 degrees


Specifications

Engine

Number of Cylinders

6

Engine Make

2238

Engine Model

SAA6D140E-5

Gross Power

453 hp

Net Power

438 hp

Power Measured @

2100 rpm

Displacement

928 cu in

Aspiration

Turbocharged

Operational

Fuel Capacity

130.8 gal

Hydraulic System Fluid Capacity

47.6 gal

Engine Oil Capacity

13.2 gal

Tire Size

29.5R25

Transmission

Transmission Type

full automatic, countershaft type

Number of Forward Gears

6

Number of Reverse Gears

2

Max Speed

36.4 mph

Weights

Front Axle - empty

39430 lb

Center Axle - empty

16316 %

Rear Axle - empty

15815 lb

Front Axle - loaded

44138 %

Center Axle - loaded

54335 %

Rear Axle - loaded

53727 lb

Total Empty

71560 lb

Total Loaded

152200 lb

Dump

Rated Payload

80634.1 lb

Capacity - Struck

21.6 yd3

Capacity - Heaped

29.2 yd3

Dump Angle

70 degrees

Raise Time

12 sec

Dimensions

Overall Length

37.1 ft in

Overall Width

11.4 ft in

Overall Height

12.2 ft in

Wheelbase

17.5 ft in

Ground Clearance

2 ft in

Dump Height

23.5 ft in

Dump Ground Clearance

2.4 ft in
