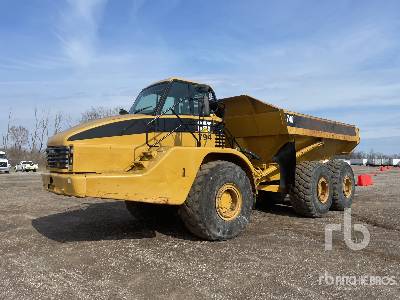

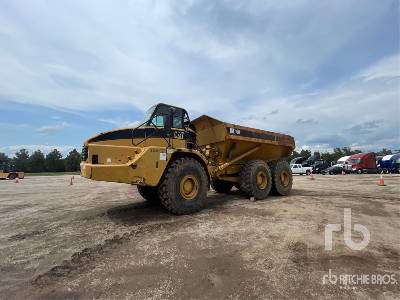

Caterpillar 740 Articulated Dump Truck
Units
Dimensions
Dimensions
A
Overall Length
35.73ft in
B
Overall Width
11.26ft in
C
Overall Height
12.29ft in
D
Wheelbase
17.15ft in
E
Ground Clearance
1.9ft in
F
Dump Height
23.19ft in
G
Dump Ground Clearance
2.29ft in
Dump
H
Dump Angle
70degrees
Lower Time
7sec
Rated Payload
83775.66lb
Capacity - Struck
22.76yd3
Raise Time
12sec
Capacity - Heaped
29.96yd3
Specifications
Engine
Number Of Cylinders
6
Engine Make
2236
Engine Model
C15 ACERT Technology
Gross Power
464hp
Net Power
445hp
Power Measured @
1700rpm
Aspiration
Turbocharged
Displacement
926cu in
Bore
5.4in
Stroke
6.8in
Net Power - Iso 9249
458hp
Net Power - Sae J1349
453hp
Gross Power - Sae J1995
469hp
Engine Model
Cat C15 ACERT
Net Power - Eec 80/1269
458hp
Operational
Fuel Capacity
148gal
Hydraulic System Fluid Capacity
61.6gal
Cooling System Fluid Capacity
21.2gal
Engine Oil Capacity
10.1gal
Transmission Fluid Capacity
19.1gal
Tire Size
29.5R25
Transmission
Number Of Forward Gears
7
Number Of Reverse Gears
2
Max Speed
34mph
Forward - 1
5.5mph
Forward - 2
7.5mph
Forward - 3
10.2mph
Forward - 4
13.7mph
Forward - 5
18.6mph
Forward - 6
25.1mph
Forward - 7
34mph
Reverse - 1
5.2mph
Reverse - 2
7.2mph
Weights
Front Axle - Empty
42791.8lb
Center Axle - Empty
15542.6%
Rear Axle - Empty
14065.5lb
Front Axle - Loaded
53528.3%
Center Axle - Loaded
52062.2%
Rear Axle - Loaded
50585.1lb
Total Empty
72399.9lb
Total Loaded
156175.5lb
Service Refill Capacities
Cooling System
21.1gal
Fuel Tank
140.5gal
Engine Crankcase
9.5gal
Transmission
19gal
Hydraulic System
86.6gal
Final Drives/Differential
19gal
Output Transfer Gear Box
4.8gal
Standards
Cab - Fops
ISO 3449 Level II - 2005
Cab - Rops
ISO 3471 - 2008
Brakes
ISO 3450 - 1996
Steering
ISO 5010 - 2007
Operating Weights
Front Axle - Empty
42770lb
Center Axle - Empty
15873lb
Rear Axle - Empty
14330lb
Total - Empty
72973lb
Front Axle - Rated Load
11464lb
Center Axle - Rated Load
37809lb
Rear Axle - Rated Load
37809lb
Total - Rated Load
87083lb
Front Axle - Loaded
54234lb
Center Axle - Loaded
53683lb
Rear Axle - Loaded
52139lb
Total - Loaded
160055lb
Sound Levels
Interior Cab
79 dB(A)
Body Capacities
Heaped (Sae 2:1)
31.4yd3
Struck
24.2yd3
Tailgate Struck
25.5yd3
Tailgate Heaped Sae 2:1
33.5yd3
Body Hoist
Raise Time
12 s
Lower Time
7 s
Body Plate Thickness
Front
0.4in
Scow
0.7in
Side
0.5in
Base
0.7in
