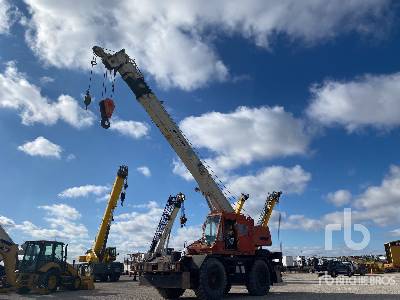

Tadano TR350XL Rough Terrain Crane

Rough Terrain Crane
Rough Terrain Crane
Rough Terrain Crane
Rough Terrain Crane
Rough Terrain Crane
Rough Terrain Crane
Units

Dimensions

Boom

I

Min Height @ Max Raise Angle

29.86ft in

J

Max Height @ Max Raise Angle - No Jib

93.84ft in

M

Max Elevating Angle

80degrees

Number Of Sections

4

Swing Speed

3.4rpm

Dimensions

A

Transport Length

36.09ft in

B

Transport Width

8.99ft in

C

Transport Height

11.59ft in

D

Wheelbase

136.23in

F

Width W/ Outriggers Extended

21.99ft in

G

Carrier/Base Length

24114.18ft in

H

Upper Structure Tail Swing Radius

10.83ft in


Specifications

Engine

Fuel Filter

Full flow with replaceable element

Radiator Core Type

Fin and tube core, thermostat controlled

Number Of Cylinders

6

Engine Make

Mitsubishi

Engine Model

6D16T

Cooling System

Liquid pressurized, recirculating bypass

Air Cleaner

Dry type, replaceable element

Net Power

211.9hp

Power Measured @

2800rpm

Max Torque

470lb ft

Torque Measured @

1600rpm

Displacement

460.5cu in

Bore

4.7in

Stroke

4.6in

Oil Filter

Full flow with replaceable element

Aspiration

Direct injection diesel

Operational

Operating Weight

59965.8lb

Fuel Capacity

79.3gal

Hydraulic System Fluid Capacity

120.5gal

Cooling System Fluid Capacity

3.5gal

Operating Voltage

24V

Tire Size

20.5-25 24PR

Transmission

Transmission Type

Electronically controlled full automatic transmission

Number Of Forward Gears

6

Number Of Reverse Gears

2

Max Speed - Forward

31.2mph
