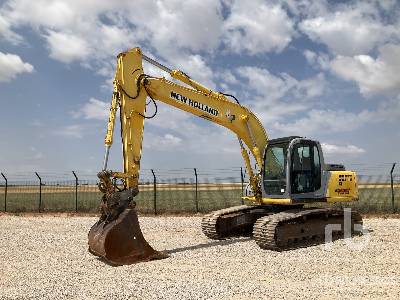

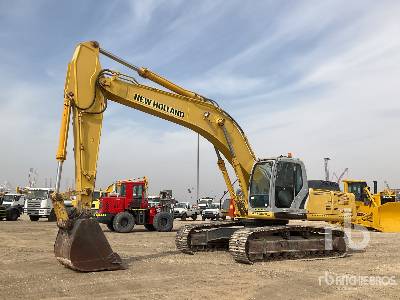

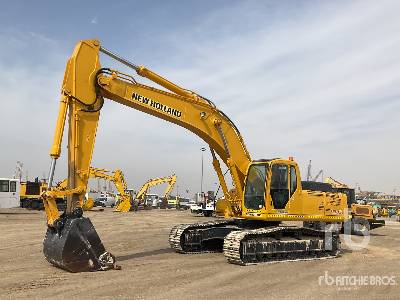

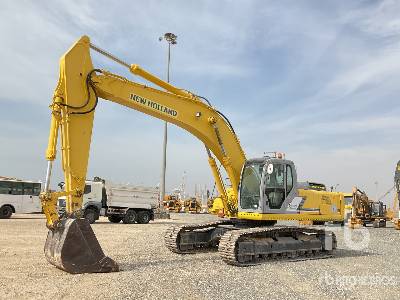

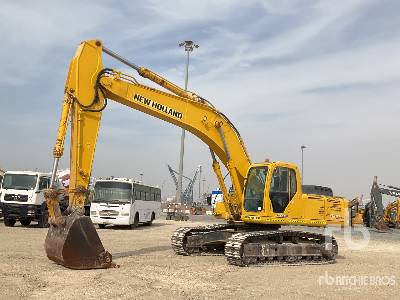

New Holland E305EL Hydraulic Excavator

Hydraulic Excavator
Hydraulic Excavator
Hydraulic Excavator
Hydraulic Excavator
Hydraulic Excavator
Hydraulic Excavator
Units

Dimensions

Boom/Stick Option (Hex) 1

A

Shipping Length Of Unit

34.36ft in

C

Shipping Height Of Unit

11.46ft in

I

Max Cutting Height

31.98ft in

J

Max Loading Height

22.9ft in

K

Max Reach Along Ground

31.59ft in

L

Max Vertical Wall Digging Depth

19.8ft in

M

Max Digging Depth

20.52ft in

Boom/Stick Option (Hex) 1

monoblock boom / stick 2100mm

Boom/Stick Option (Hex) 2

A

Shipping Length Of Unit

34.03ft in

I

Max Cutting Height

32.62ft in

C

Shipping Height Of Unit

11.19ft in

J

Max Loading Height

23.39ft in

K

Max Reach Along Ground

32.56ft in

L

Max Vertical Wall Digging Depth

20.86ft in

M

Max Digging Depth

21.51ft in

Boom/Stick Option (Hex) 2

monobloc boom / stick 2400mm

Boom/Stick Option (Hex) 3

A

Shipping Length Of Unit

33.7ft in

I

Max Cutting Height

33.57ft in

J

Max Loading Height

24.29ft in

C

Shipping Height Of Unit

10.37ft in

K

Max Reach Along Ground

34.67ft in

L

Max Vertical Wall Digging Depth

23.26ft in

M

Max Digging Depth

23.8ft in

Boom/Stick Option (Hex) 3

monobloc boom / stick 3100mm

Boom/Stick Option (Hex) 4

A

Shipping Length Of Unit

33.73ft in

C

Shipping Height Of Unit

10.5ft in

I

Max Cutting Height

34.89ft in

J

Max Loading Height

25.5ft in

K

Max Reach Along Ground

36.8ft in

M

Max Digging Depth

25.94ft in

Max Vertical Wall Dig Depth

25.47ft in

Boom/Stick Option (Hex) 4

monobloc boom / stick 3750mm

Dimensions

E

Ground Clearance

1.77ft in

G

Height To Top Of Cab

10.41ft in

B

Width To Outside Of Tracks

10.47ft in

D

Length Of Track On Ground

13.16ft in

H

Tail Swing Radius

9.68ft in

Removal Counterweight Clearance

4.09ft in

Undercarriage

F

Track Gauge

8.5ft in

N

Shoe Size

23.63in

Ground Pressure

8.71psi

Max Travel Speed

3.42mph

Number Of Carrier Rollers Per Side

2

Number Of Track Rollers Per Side

9


Specifications

Engine

Number Of Cylinders

6

Engine Model

CNH 667TA/EEC

Net Power

201hp

Power Measured @

2100rpm

Max Torque

627lb ft

Displacement

408.9cu in

Torque Measured @

1400rpm

Operational

Operating Weight

69577.9lb

Fuel Capacity

118.1gal

Cooling System Fluid Capacity

6.1gal

Hydraulic System Fluid Capacity

74gal

Operating Voltage

24V

Engine Oil Capacity

4.5gal

Alternator Supplied Amperage

70amps

Hydraulic System Relief Valve Pressure

4974.8psi

Hydraulic Pump Flow Capacity

127.4gal/min

Swing Mechanism

Swing Speed

11rpm

Buckets

Reference Bucket Capacity

1.5yd3

Minimum Bucket Capacity

0.8yd3

Maximum Bucket Capacity

2.2yd3
