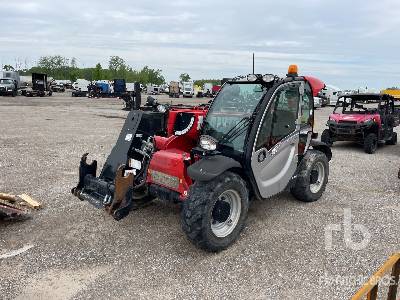

Manitou MLT 840-137 PS Telescopic Forklift
Units
Dimensions
Dimensions
A
Length To Fork Face
17.62ft in
E
Ground Clearance
1.35ft in
B
Width Over Tires
7.85ft in
C
Overall Height
7.88ft in
D
Wheelbase
9.45ft in
Turning Radius Outside Tires
12.37ft in
Lift
F
Max Lift Height
24.78ft in
G
Max Forward Reach
14.6ft in
Lowering Time - Unladen
4.91sec
Boom Retraction Time - Unladen
5.2sec
Crowd
3sec
Dump
2.4sec
Lifting Time - Unladen
8.4sec
Boom Extension Time - Unladen
6.3sec
Max Lift Capacity
8818.49lb
Specifications
Engine
Number Of Cylinders
4
Engine Make
John Deere
Engine Model
4045 PWX
Gross Power
137hp
Cooling System
Water
Max Torque
393.9lb ft
Torque Measured @
1500rpm
Displacement
274.7cu in
Emission Level
Stage III B
Injection
Direct
Operational
Operating Weight
18521.1lb
Fuel Capacity
37.8gal
Hydraulic System Fluid Capacity
46.3gal
Tire Size
460/70 R 24
Transmission
Transmission Type
Torque converter
Number Of Forward Gears
5
Number Of Reverse Gears
3
Max Speed - Forward
24.9mph
Hydraulic
Pump Type
Swashplate piston pump, electronically controlled variable cubic capacity
Pump Flow Capacity
47.6gal/min
Relief Valve Pressure
4206.1psi
