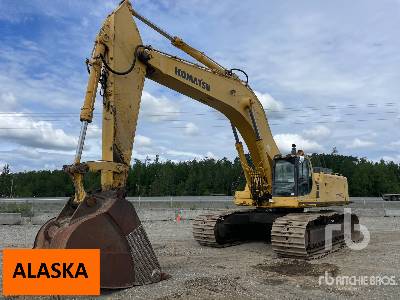

Komatsu PC750LC-6 Shovel

Komatsu PC750LC-6 Shovel Specs side
Komatsu PC750LC-6 Shovel Specs side
Komatsu PC750LC-6 Shovel Specs back
Komatsu PC750LC-6 Shovel Specs back
Komatsu PC750LC-6 Shovel Specs extended_1
Komatsu PC750LC-6 Shovel Specs extended_1
Komatsu PC750LC-6 Shovel Specs extended_2
Komatsu PC750LC-6 Shovel Specs extended_2
Komatsu PC750LC-6 Shovel Specs extended_3
Komatsu PC750LC-6 Shovel Specs extended_3
Units

Dimensions

Backhoe Boom / Stick 1

A

Overall Length

45.34 ft in

C

Height to Top of Boom

15.7 ft in

I

Max Cutting Height

39.22 ft in

J

Max Dump Height

27 ft in

L

Max Vertical Wall Dig Depth

19.24 ft in

M

Max Dig Depth

27.7 ft in

Q

Max Cutting Height

39.22 ft in

R

Max Dump Height

27 ft in

T

Max Dig Depth

27.7 ft in

Backhoe Boom / Stick 2

I

Max Cutting Height

37.77 ft in

J

Max Dump Height

24.82 ft in

L

Max Vertical Wall Dig Depth

16.18 ft in

M

Max Dig Depth

23.02 ft in

Q

Max Cutting Height

37.77 ft in

R

Max Dump Height

24.82 ft in

T

Max Dig Depth

23.02 ft in

Dimensions

B

Width Over Tracks

13.81 ft in

D

Length of Track on Ground

16.47 ft in

E

Ground Clearance

2.56 in

G

Height to Top of Cab

11.53 ft in

Loading Shovel

I

Max Cutting Height

34.78 ft in

J

Max Dump Height

25.04 ft in

M

Max Dig Depth

11.23 ft in

P

Height to Top of Boom - shovel

16.65 ft in

Q

Max Cutting Height

34.78 ft in

R

Max Dump Height

25.04 ft in

S

Max Dig Reach

32.68 ft in

T

Max Dig Depth

11.23 ft in

U

Overall Length - shovel

32.03 ft in

Undercarriage

H

Tail Swing Radius

14.1 ft in

F

Track Gauge

9.12 ft in


Specifications

Engine

Engine Make

2238

Engine Model

SAA6D140E-2

Net Power

450 hp

Displacement

930.1 cu in

Aspiration

Turbocharged

Operational

Fuel Capacity

232.5 gal

Cooling System Fluid Capacity

22.5 gal

Engine Oil Capacity

10.1 gal

Hydraulic System Fluid Capacity

116.3 gal

Swing Speed

5.7 rpm

Undercarriage

Max Travel Speed

2.7 mph

Number of Upper Rollers

47

Number of Lower Rollers

8

Number of Track Shoes per Side

3

Track Gauge

9.2 ft in

Backhoe Shoe Width 1

28 in

Backhoe Shoe Width 2

31.9 in

Backhoe Shoe Width 3

39.8 in

Backhoe Operating Weight - Shoe 1

177791.9 lb

Backhoe Operating Weight - Shoe 2

179335.1 lb

Backhoe Operating Weight - Shoe 3

182421.6 lb

Backhoe Ground Pressure - Shoe 1

14.6 psi

Backhoe Ground Pressure - Shoe 2

12.9 psi

Backhoe Ground Pressure - Shoe 3

11.6 psi

Tail Swing Radius

14.1 ft in

Backhoe Boom / Stick 1

Backhoe Boom / Stick

Boom 8200mm / Stick 3600mm

Height to Top of Boom

15.7 ft in

Overall Length

45.4 ft in

Max Dig Depth

27.7 ft in

Max Vertical Wall Dig Depth

19.3 ft in

Max Cutting Height

39.3 ft in

Max Dump Height

27 ft in

Max Reach on Ground

44 ft in

Arm Crowd Force

64020 lb ft

Backhoe Boom / Stick 2

Backhoe Boom / Stick

Boom 7100mm / Stick 2900mm

Max Dig Depth

23.1 ft in

Max Vertical Wall Dig Depth

16.2 ft in

Max Cutting Height

37.8 ft in

Max Dump Height

24.9 ft in

Max Reach on Ground

39 ft in

Arm Crowd Force

74516 lb ft

Loading Shovel

Loading Shovel

Boom 4600mm / Stick 3400mm

Height to Top of Boom - shovel

16.7 ft in

Overall Length - shovel

32.1 ft in

Max Dig Depth

11.3 ft in

Max Cutting Height

34.8 ft in

Max Dump Height

25.1 ft in

Max Dig Reach

32.7 ft in

Arm Crowd Force

99208 lb ft

Dimensions

Width Over Tracks

13.9 ft in

Height to Top of Cab

11.6 ft in

Length of Tracks

20.8 ft in

Length of Track on Ground

16.5 ft in

Ground Clearance

2.6 in

Upper Structure Ground Clearance

4.5 ft in
