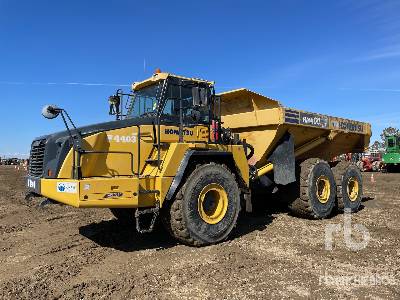

Komatsu Hm300-1 Articulated Dump Truck
Units
Dimensions
Dimensions
A
Overall Length
33.13ft in
C
Overall Height
11.49ft in
D
Wheelbase
16.26ft in
E
Ground Clearance
1.68ft in
F
Dump Height
21.15ft in
G
Dump Ground Clearance
1.99ft in
Dump
H
Dump Angle
70degrees
Rated Payload
60186.21lb
Capacity - Struck
16.88yd3
Raise Time
12sec
Capacity - Heaped
21.72yd3
Specifications
Engine
Number Of Cylinders
6
Engine Make
2238
Engine Model
SAA6D125E-3
Gross Power
335.3hp
Net Power
324.6hp
Max Torque
1180.1lb ft
Aspiration
Turbocharged
Displacement
673.8cu in
Operational
Fuel Capacity
101gal
Hydraulic System Fluid Capacity
31.8gal
Engine Oil Capacity
9.3gal
Transmission Fluid Capacity
20.5gal
Tire Size
23.5R25
Transmission
Transmission Type
full-automatic
Number Of Forward Gears
6
Number Of Reverse Gears
2
Max Speed
36.7mph
Weights
Center Axle - Empty
11012.1%
Front Axle - Empty
28175.1lb
Rear Axle - Empty
10416.9lb
Front Axle - Loaded
32766.8%
Center Axle - Loaded
39254.2%
Rear Axle - Loaded
37934.7lb
Total Empty
49604.1lb
Total Loaded
109955.6lb
