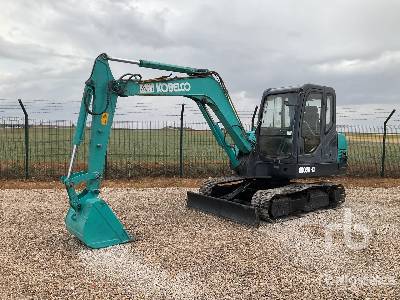

Kobelco 50SR-3 Midi Excavator

Kobelco 50SR-3 Midi Excavator Specs front
Kobelco 50SR-3 Midi Excavator Specs front
Kobelco 50SR-3 Midi Excavator Specs side
Kobelco 50SR-3 Midi Excavator Specs side
Kobelco 50SR-3 Midi Excavator Specs extended
Kobelco 50SR-3 Midi Excavator Specs extended
Units

Dimensions

Boom/Stick Option (HEX) 1

A

Shipping Length of Unit

17.16 ft in

C

Shipping Height of Unit

8.54 ft in

I

Max Cutting Height

18.61 ft in

J

Max Loading Height

13.42 ft in

K

Max Reach Along Ground

18.87 ft in

L

Max Vertical Wall Digging Depth

9.22 ft in

M

Max Digging Depth

11.78 ft in

Dimensions

B

Width to Outside of Tracks

6.44 ft in

D

Length of Track on Ground

6.47 ft in

E

Ground Clearance

1.14 ft in

G

Height to Top of Cab

8.54 ft in

H

Tail Swing Radius

3.22 ft in

Undercarriage

F

Track Gauge

5.12 ft in

N

Shoe Size

15.75 in


Specifications

Engine

Number of Cylinders

4

Engine Make

2348

Engine Model

4TNV88-XYB

Net Power

40.8 hp

Power Measured @

2400 rpm

Displacement

133.6 cu in

Operational

Operating Weight

10695 lb

Fuel Capacity

14 gal

Hydraulic System Fluid Capacity

16.7 gal

Operating Voltage

12 V

Alternator Supplied Amperage

40 amps

Hydraulic System Relief Valve Pressure

3336 psi

Hydraulic Pump Flow Capacity

42.1 gal/min

Swing Mechanism

Swing Speed

8.8 rpm

Swing Torque

966 lb ft

Undercarriage

Shoe Size

15.8 in

Ground Pressure

4 psi

Max Travel Speed

2.9 mph

Drawbar Pull

12185 lb

Track Gauge

5.2 ft in

Buckets

Reference Bucket Capacity

0.3 yd3

Boom/Stick Option (HEX) 1

Boom/Stick Option (HEX) 1

Stick 5\'1\" (1560mm)

Shipping Height of Unit

8.6 ft in

Shipping Length of Unit

17.2 ft in

Max Digging Depth

11.8 ft in

Max Reach Along Ground

18.9 ft in

Max Cutting Height

18.7 ft in

Max Loading Height

13.5 ft in

Max Vertical Wall Digging Depth

9.3 ft in

Dimensions

Width to Outside of Tracks

6.5 ft in

Height to Top of Cab

8.6 ft in

Ground Clearance

1.2 ft in

Removal Counterweight Clearance

2.1 ft in

Tail Swing Radius

3.3 ft in

Length of Track on Ground

6.5 ft in
