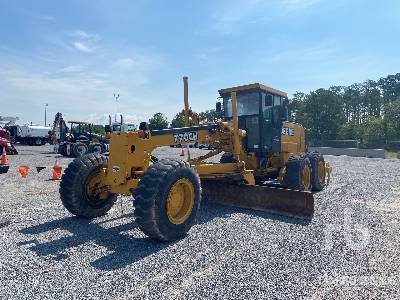

John Deere 772CH Motor Grader

John Deere 772CH Motor Grader Specs front
John Deere 772CH Motor Grader Specs front
John Deere 772CH Motor Grader Specs side
John Deere 772CH Motor Grader Specs side
John Deere 772CH Motor Grader Specs back
John Deere 772CH Motor Grader Specs back
Units

Dimensions

Dimensions

A

Overall Length

28.25 ft in

B

Width Over Tires

8.24 ft in

D

Wheelbase

19.59 ft in

F

Front Ground Clearance

1.93 ft in

G

Tandem Axle Wheelbase

5.06 ft in

H

Blade Base

8.76 ft in


Specifications

Engine

Number of Cylinders

6

Engine Make

2240

Engine Model

6081H

Net Power Gear 1-2

180 hp

Power Measured @

1900 rpm

Net Power Gear 5-6

210 hp

Torque Measured @

900 rpm

Max Power

210 hp

Net Power Gears 7-8

210 hp

Net Torque Gears 1-2

625 lb ft

Net Torque Gears 3-4

735 lb ft

Net Torque Gears 5-6

756 lb ft

Net Torque Gears 7-8

756 lb ft

Displacement

494 cu in

Aspiration

Turbocharged with Aftercooler

Net Power Gear 4-6

200 hp

Operational

Std Operation Weight - Front Axle

10210 lb

Std Operation Weight - Rear Axle

22910 lb

Std Operation Weight - Total

33120 lb

Max Operation Weight - Front Axle

11330 lb

Max Operation Weight - Rear Axle

26520 lb

Max Operation Weight - Total

37850 lb

Fuel Capacity

106 gal

Oil System Fluid Capacity

7.7 gal

Cooling System Fluid Capacity

12 gal

Hydraulic System Fluid Capacity

15.6 gal

Transmission Fluid Capacity

10.1 gal

Rear Diff/Final Drive Fluid Capacity

9.5 gal

Circle Gearbox Fluid Capacity

1.1 gal

Tandem Case Fluid Capacity (each)

19.9 gal

Tire Size

14.00-24

Operating Voltage

24 V

Alternator Supplied Amperage

55 amps

Steering

Articulation Angle

25 degrees

Turning Radius

22 ft in

Transmission

Transmission Type

Power Shift

Number of Gears - Forward

8

Number of Gears - Reverse

8

Max Speed - Forward

25.8 mph

Max Speed - Reverse

25.8 mph

Front Axle

Wheel Lean

20 degrees

Oscillation - Total

32 degrees

Ground Clearance

2 ft in

Moldboard

Moldboard Width

12 ft in

Moldboard Height

24 in

Moldboard Thickness

0.9 in

Side Shift Left

26.9 in

Side Shift Right

26.9 in

Blade Pull at Max Weight

43860 lb

Hydraulic System

Pump Type

Closed Center Variable displacement

Pump Flow

54.7 gal/min

Relief Valve Pressure

2550 psi

Circle

Diameter

59.9 in

Rotation

360 degrees

Shift Left

31 in

Shift Right

28.6 in

Max Reach Outside Tires - Left

85.1 in

Max Reach Outside Tires - Right

83.1 in

Max Lift Above Ground

18.6 in

Blade Tip Angle - Front

49 degrees

Blade Tip Angle - Rear

5 degrees

Dimensions

Height to Top of Isomount Cab

10.3 ft in

Overall Length

28.3 ft in

Width Over Tires

8.3 ft in

Wheelbase

19.6 ft in

Blade Base

8.8 ft in

Tandem Axle Wheelbase

5.1 ft in

Front Ground Clearance

2 ft in
