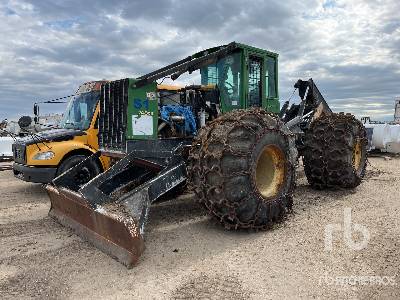

John Deere 748G Series III Skidder

John Deere 748G Series III Skidder Specs front
John Deere 748G Series III Skidder Specs front
John Deere 748G Series III Skidder Specs back
John Deere 748G Series III Skidder Specs back
John Deere 748G Series III Skidder Specs extended
John Deere 748G Series III Skidder Specs extended
Units

Dimensions

Dimensions

A

Overall Length

25.47 ft in

B

Overall Width

10.63 ft in

C

Height to Top of Cab

10.26 ft in

D

Wheelbase

12.08 ft in

E

Ground Clearance

1.97 ft in

F

Max Height of Boom

12.41 ft in

G

Height of Grapple from Ground

4.37 ft in

H

Reach of Grapple at Ground Level

5.08 ft in

I

Tong Opening at Tips

10.42 in


Specifications

Engine

Number of Cylinders

6

Engine Make

2240

Engine Model

6081H

Gross Power

177 hp

Power Measured @

2200 rpm

Peak Torque

596 lb ft

Torque Measured @

1400 rpm

Displacement

494 cu in

Aspiration

turbocharged

Operational

Operating Weight

34310 lb

Fuel Capacity

83 gal

Cooling System Fluid Capacity

7.5 gal

Engine Oil Capacity

6.3 gal

Front Diff Fluid Capacity

7.5 gal

Rear Diff Fluid Capacity

7.5 gal

Transmission Fluid Capacity

7.8 gal

Hydraulic System Fluid Capacity

11 gal

Operational Voltage

12 V

Alternator Supplied Amperage

120 amps

Axle Oscillation

30 degrees

Steering Angle

90 degrees

Tire Size

30.5x32

Transmission

Transmission Type

direct-drive power shift

Number of Forward Gears

8

Number of Reverse Gears

7

Max Speed - Forward

15.2 mph

Max Speed - Reverse

10.2 mph

Hydraulic

Pump Type

variable-displacement axial-piston

Pump Flow

42 gal/min

Relief Valve Pressure

3000 psi

Dimensions

Overall Width

10.7 ft in

Blade Width

9.7 ft in

Height to Top of Cab

10.3 ft in

Max Blade Height

59.1 in

Wheelbase

12.1 ft in

Ground Clearance

2 ft in

Overall Length

25.5 ft in

Height of Grapple From Ground

4.4 ft in

Reach of Grapple at Ground Level

5.1 ft in

Max Height of Boom

12.5 ft in

Tong Opening at Tips

10.5 in

Grapple Capacity - tongs tip to tip

12.5 ft2

Drum Diameter

8 in

Cable Width

0.7 in

Drum Capacity at Cable Width

254 ft in

Max Line Pull - bare drum

50458 lb

Max Line Speed

142 ft/min
