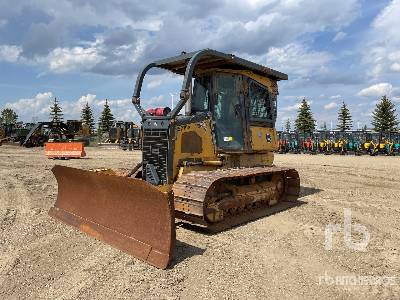

John Deere 650J XLT Crawler Tractor

Crawler Tractor
Crawler Tractor
Crawler Tractor
Crawler Tractor
Crawler Tractor
Crawler Tractor
Units

Dimensions

Dimensions

A

Length w/ Blade

13.96ft in

B

Width Over Tracks

6.59ft in

C

Height to Top of Cab

9.09ft in

D

Length of Track on Ground

7.67ft in

E

Ground Clearance

1.2ft in

Undercarriage

G

Track Gauge

5.09ft in

H

Standard Shoe Size

18in


Specifications

Engine

Number of Cylinders

4

Engine Make

2240

Engine Model

4045T

Net Power

90hp

Power Measured @

2200rpm

Max Torque

306lb ft

Displacement

276cu in

Torque Measured @

1200rpm

Aspiration

Altitude-compensating turbocharger

Operational

Operating Weight

18640.1lb

Fuel Capacity

47gal

Cooling System Fluid Capacity

4.3gal

Engine Oil Capacity

3.7gal

Hydraulic Fluid Capacity

8.5gal

Powertrain Fluid Capacity

11.3gal

Final Drives Fluid Capacity

1.8gal

Operating Voltage

12V

Alternator Supplied Amperage

65amps

Transmission

Transmission Type

Hydrostatic

Max Speed - Forward

5mph

Max Speed - Reverse

5mph

Undercarriage

Ground Pressure

5.6psi

Ground Contact Area

3312in2

Standard Shoe Size

18in

Number of Shoes per Side

40

Number of Track Rollers per Side

7

Track Pitch

6.8in

Track Gauge

5.1ft in

Hydraulic System

Pump type

Gear

Relief Valve Pressure

3000psi

Pump Flow Capacity

15gal/min

Standard Blade

Width

8.8ft in

Height

36.8in

Capacity

2.7yd3

Blade Angle (both directions)

22.2degrees

Cutting Depth

19.7in

Dimensions

Length w/ Blade

14ft in

Width Over Tracks

6.6ft in

Height to Top of Cab

9.1ft in

Length of Track on Ground

7.7ft in

Ground Clearance

1.2ft in
