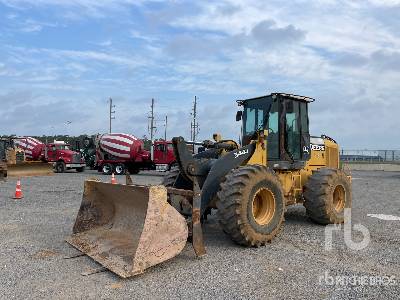

John Deere 544J Waste Handler High-Lift Wheel Loader

Wheel Loader
Wheel Loader
Wheel Loader
Wheel Loader
Wheel Loader
Wheel Loader
Units

Dimensions

Bucket

G

Dump Clearance At Max Raise

9.75ft in

Bucket Capacity - Heaped

5yd3

Bucket Width

8.33ft in

Breakout Force

16721lb

Dimensions

E

Ground Clearance

1.5ft in

A

Length With Bucket On Ground

26.08ft in

C

Height To Top Of Cab

10.83ft in

D

Wheelbase

9.67ft in

F

Hinge Pin - Max Height

12.75ft in

H

Reach At Max Lift And Dump

3ft in


Specifications

Engine

Number Of Cylinders

6

Engine Make

2240

Engine Model

6068H

Net Power

167hp

Power Measured @

1900rpm

Max Torque

496lb ft

Displacement

414cu in

Torque Measured @

1600rpm

Torque Rise

38%

Operational

Operating Weight

35560lb

Fuel Capacity

85gal

Hydraulic System Fluid Capacity

26gal

Engine Oil Fluid Capacity

5.6gal

Cooling System Fluid Capacity

5.9gal

Transmission Fluid Capacity

4.9gal

Front Axle/Diff Fluid Capacity

4.5gal

Rear Axle/Diff Fluid Capacity

4.5gal

Static Tipping Weight

21008lb

Turning Radius

16.3ft in

Operating Voltage

24V

Alternator Supplied Amperage

80amps

Rear Axle Oscillation

16degrees

Tire Size

20.5-25

Transmission

Transmission Type

Automatic Powershift

Number Of Forward Gears

3

Number Of Reverse Gears

3

Max Speed - Forward

14.2mph

Max Speed - Reverse

15mph

Hydraulic System

Relief Valve Setting

3650psi

Pump Flow Capacity

50gal/min

Raise Time

5.8sec

Dump Time

1.2sec

Lower Time

3.3sec

Pump Type

Variable axial piston
