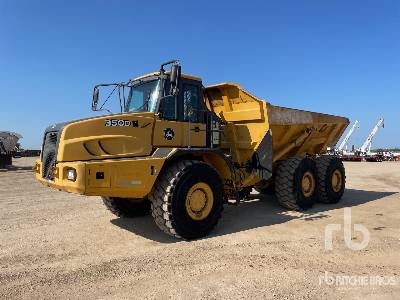

John Deere 350D Articulated Dump Truck

John Deere 350D Articulated Dump Truck Specs front
John Deere 350D Articulated Dump Truck Specs front
John Deere 350D Articulated Dump Truck Specs side
John Deere 350D Articulated Dump Truck Specs side
John Deere 350D Articulated Dump Truck Specs back
John Deere 350D Articulated Dump Truck Specs back
Units

Dimensions

Dimensions

A

Overall Length

33.67 ft in

B

Overall Width

12.5 ft in

C

Overall Height

12.5 ft in

D

Wheelbase

17.89 ft in

E

Ground Clearance

1.67 ft in

F

Dump Height

23.5 ft in

G

Dump Ground Clearance

2.67 ft in

Dump

H

Dump Angle

70 degrees


Specifications

Engine

Number of Cylinders

6

Engine Make

2345

Engine Model

OM501LA

Net Power

380 hp

Power Measured @

1800 rpm

Displacement

729 cu in

Max Torque

1343 lb ft

Torque Measured @

1080 rpm

Aspiration

Turbocharged w/ charged air cooling

Operational

Fuel Capacity

128 gal

Hydraulic System Fluid Capacity

47 gal

Cooling System Fluid Capacity

8.9 gal

Engine Oil Capacity

8 gal

Transmission Fluid Capacity

9 gal

Operating Voltage

24 V

Alternator Supplied Amperage

80 amps

Tire Size

26.5R25

Transmission

Transmission Type

Allison 4500R ORS fully automatic

Number of Forward Gears

6

Number of Reverse Gears

1

Max Speed

34 mph

Weights

Front Axle - empty

29760 lb

Center Axle - empty

16090 %

Rear Axle - empty

15870 lb

Front Axle - loaded

40570 %

Center Axle - loaded

46520 %

Rear Axle - loaded

46300 lb

Total Empty

61730 lb

Total Loaded

133379.7 lb

Dump

Rated Payload

71650 lb

Capacity - Struck

19.9 yd3

Capacity - Heaped

26.3 yd3

Dump Angle

70 degrees

Raise Time

13 sec

Lower Time

7.6 sec

Dimensions

Overall Length

33.7 ft in

Overall Width

12.5 ft in

Overall Height

12.5 ft in

Wheelbase

17.9 ft in

Ground Clearance

1.7 ft in

Dump Height

23.5 ft in

Dump Ground Clearance

2.7 ft in
