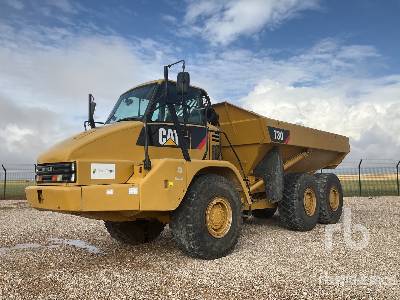

Caterpillar AD30 Articulated Dump Truck
Units
Dimensions
Dimensions
A
Overall Length
333.34ft in
B
Overall Width
8.83ft in
C
Overall Height
8.36ft in
D
Wheelbase
17.07ft in
E
Ground Clearance
1.31ft in
F
Dump Height
18.38ft in
G
Dump Ground Clearance
1.84ft in
Dump
H
Dump Angle
65degrees
Lower Time
11.2sec
Capacity - Heaped
18.8yd3
Rated Payload
66150lb
Raise Time
10.5sec
Specifications
Engine
Engine Make
2236
Engine Model
C15 ACERT
Gross Power
408hp
Net Power
377hp
Power Measured @
1800rpm
Displacement
927.9cu in
Operational
Fuel Capacity
132gal
Hydraulic System Fluid Capacity
38.3gal
Cooling System Fluid Capacity
20gal
Engine Oil Capacity
10gal
Transmission Fluid Capacity
17.7gal
Tire Size
265 x R25 Radials
Transmission
Number Of Forward Gears
4
Number Of Reverse Gears
1
Max Speed
25.4mph
Weights
Front Axle - Empty
44651lb
Rear Axle - Empty
21499lb
Front Axle - Loaded
58477%
Rear Axle - Loaded
73823lb
Total Empty
66150lb
Total Loaded
132300lb
