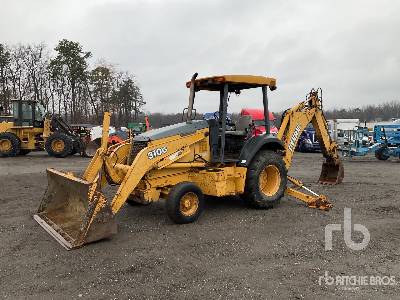

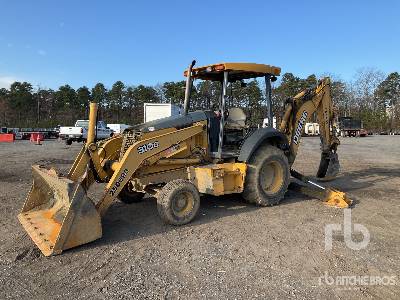

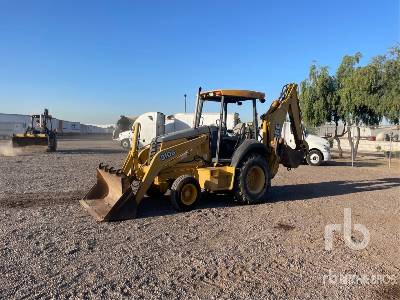

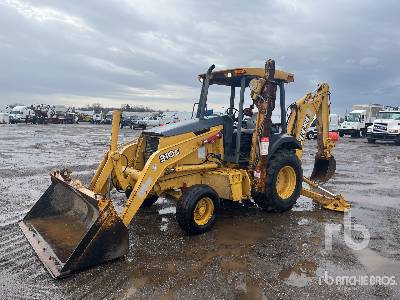

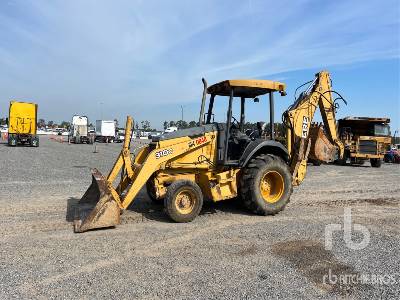

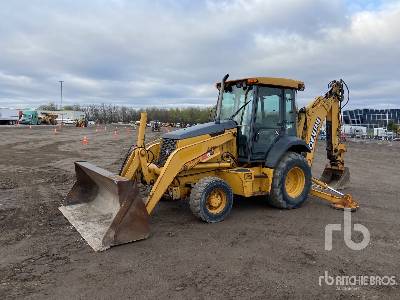

John Deere 310G Loader Backhoe

Loader Backhoe
Loader Backhoe
Loader Backhoe
Loader Backhoe
Loader Backhoe
Loader Backhoe
Units

Dimensions

Backhoe

J

Load Height - Std

10.92 ft in

K

Reach From Swivel - Std

17.83 ft in

L

Dig Depth - Std

14.25 ft in

Dimensions

A

Transport Length

23.25 ft in

B

Transport Width

7.16 ft in

C

Transport Height

11.16 ft in

D

Wheelbase

6.89 ft in

E

Ground Clearance

1.01 ft in

Loader

H

Reach at Max Dump Height

2.58 ft in

I

Dig Depth

6.3 in


Specifications

Engine

Engine Make

2240

Engine Model

4045D

Gross Power

78 hp

Net Power

73 hp

Power Measured @

2000 rpm

Torque Measured @

1000 rpm

Net Torque Rise

28 %

Net Max Torque

216 lb ft

Aspiration

Naturally Aspirated

Operational

Operating Weight 2wd

12800 lb

Operating Weight 4wd

12800 lb

Max Weight

15090 lb

Fuel Capacity

36 gal

Hydraulic System Fluid Capacity

24 gal

Oil System Fluid Capacity

2.3 gal

Cooling System Fluid Capacity

4.3 gal

Transmission Fluid Capacity

4 gal

Front Axle Fluid Capacity

2 gal

Rear Axle Fluid Capacity

4.2 gal

Turning Radius

11.8 ft in

Tire Size Front - 2wd / 4wd

11L-15,8PR F3;12.5/80,12PR

Rear Tires Size 2wd/4wd

16.9-24,8PR R4;19.5L-24,8PR R4

Operating Voltage

12 V

Alternator Supplied Amperage

65 amps

Transmission

Transmission Type

4-speed helical cut gear, collar shift transmission synchronized in all gears with hydraulic reverser

Number of Forward Gears

4

Number of Reverse Gears

4

Max Speed - Forward

20.5 mph

Max Speed Reverse

20.5 mph

Backhoe

Dig Depth - Std

14.3 ft in

Dig Depth - Ext

18 ft in

Reach From Swivel - Std

17.9 ft in

Reach From Swivel - Ext

21.5 ft in

Bucket Dig Force - Std

11106 lb

Load Height - Std

11 ft in

Load Height - Ext

14 ft in

Loader

Bucket Capacity

1 yd3

Bucket Breakout Force

8500 lb

Lift Capacity at Full Height

6200 lb

Reach at Max Dump Height

2.6 ft in

Dig Depth

6.3 in

Hydraulic

Pump Type

Gear

Pump Flow Capacity

28 gal/min

Relief Valve Pressure

2900 psi

Dimensions

Transport Length

23.3 ft in

Transport Width

7.2 ft in

Transport Height

11.2 ft in

Height to Top of Suspended Cab

9 ft in

Wheelbase

6.9 ft in

Ground Clearance

1.1 ft in
