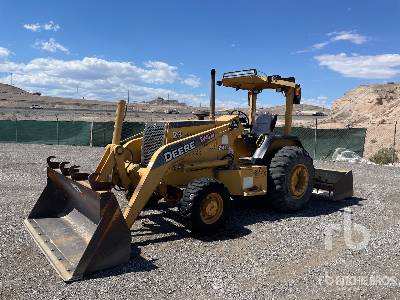

John Deere 210LE Wheel Loader

John Deere 210LE Wheel Loader Specs front
John Deere 210LE Wheel Loader Specs front
John Deere 210LE Wheel Loader Specs side
John Deere 210LE Wheel Loader Specs side
John Deere 210LE Wheel Loader Specs back
John Deere 210LE Wheel Loader Specs back
Units

Dimensions

Bucket

G

Dump Clearance at Max Raise

8.4 ft in

Dimensions

A

Length with Bucket on Ground

17.16 ft in

B

Width Over Tires

- -

C

Height to Top of Cab

8.14 ft in

D

Wheelbase

6.95 ft in

E

Ground Clearance

0.95 ft in

F

Hinge Pin - Max Height

11.39 ft in

H

Reach at Max Lift and Dump

2.88 ft in


Specifications

Engine

Number of Cylinders

4

Engine Make

2240

Engine Model

4045D

Net Power

73 hp

Gross Power

78 hp

Displacement

276 cu in

Max Torque

220

Torque Rise

26 %

Aspiration

Natural

Operational

Operating Weight

9129.4 lb

Fuel Capacity

25.9 gal

Hydraulic System Fluid Capacity

14.4 gal

Engine Oil Fluid Capacity

2.3 gal

Cooling System Fluid Capacity

4.3 gal

Rear Axle/Diff Fluid Capacity

3.5 gal

Rear Axle Oscillation

22 degrees

Tire Size

Front 12-16.5 8PR NHS Rear 16.9-24 8PR R4

Transmission

Transmission Type

synchronized

Number of Forward Gears

4

Number of Reverse Gears

4

Max Speed - Forward

20.5 mph

Max Speed - Reverse

20.5 mph

Hydraulic System

Pump Type

Gear

Relief Valve Setting

2750

Pump Flow Capacity

25 gal/min

Raise Time

5.2 sec

Dump Time

1.5 sec

Lower Time

2.4 sec

Bucket

Breakout Force

7900 lb

Dump Clearance at Max Raise

8.4 ft in

Bucket Width

7.2 ft in

Bucket Capacity - heaped

1 yd3

Dimensions

Length with Bucket on Ground

17.2 ft in

Height to Top of Cab

8.2 ft in

Ground Clearance

1 ft in

Wheelbase

7 ft in

Hinge Pin - Max Height

11.4 ft in

Reach at Max Lift and Dump

2.9 ft in
