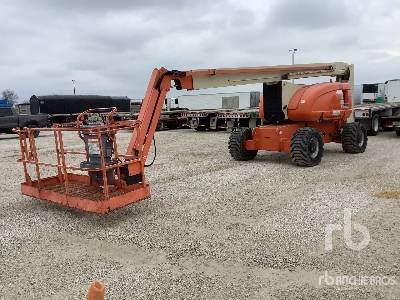

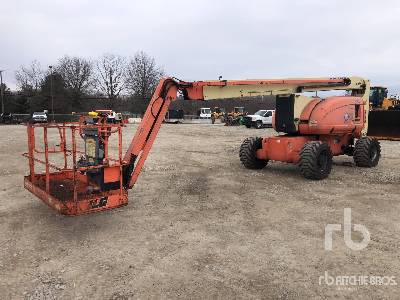

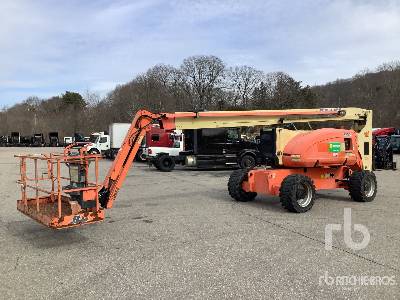

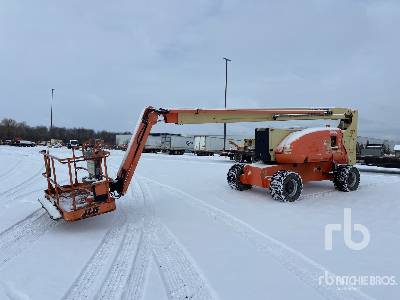

JLG 800AJ 4WD Boom Lift
Units
Dimensions
Dimensions
A
Overall Length
36.52in
B
Overall Width
8.01ft in
C
Overall Height - Mast Lowered
9.85ft in
D
Wheelbase
10.01ft in
E
Ground Clearance
11.82in
Platform Dimension A
3ft in
Platform Dimension B
8ft in
Turning Radius
11.7ft in
Up And Over Height
32.1ft in
Platform
F
Max Platform Height
79.99ft in
G
Max Horizontal Reach
51.84ft in
Platform Inner Length
96.07in
Platform Capacity - Unrestricted
500lb
Max Platform Weight Capacity
500.45lb
Platform Inner Width
35.83in
Platform Rotation
180degrees
Specifications
Engine
Diesel Engine Type
DEUTZ TD 2.9L Tier 4 Final
Diesel Engine Power
67hp
Dual Fuel Engine Type
Ford MSG425
Dual Fuel Engine Power
84hp
Maximum Ground Bearing Pressure
76psi
Engine Make
2349
Engine Model
F4M2011
Gross Power
64.4hp
Fuel Type
Diesel
System Voltage
12V
Operational
Operating Weight
34301.8lb
Fuel Capacity
39gal
Hydraulic System Fluid Capacity
40gal
Max Speed
3mph
Tire Size
445/55D x 19.5
Tire Fill/Type
Pneumatic
Performance
Axle Oscillation
Drive Speed
3mph
Swing
360degrees
Swing Type
Continuous
Gradeability
45%
