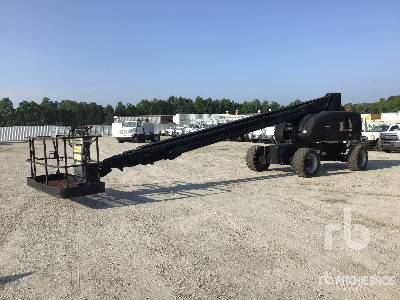

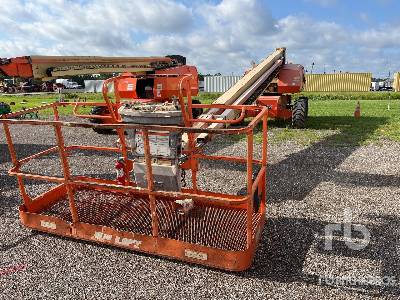

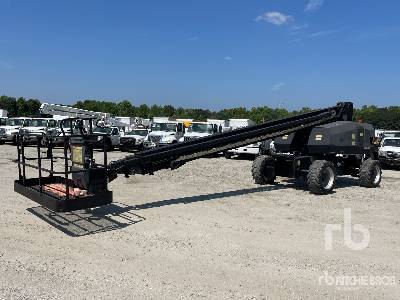

JLG 800S Boom Lift
Units
Dimensions
Dimensions
A
Overall Length
37.3in
B
Overall Width
8.2ft in
C
Overall Height - Mast Lowered
9.11ft in
E
Ground Clearance
11in
Turning Radius
19.8ft in
Platform Dimension A
3ft in
Platform Dimension B
8ft in
Tailswing Radius
4.8ft in
Platform
F
Max Platform Height
80ft in
G
Max Horizontal Reach
71ft in
Platform Capacity - Restricted
1000lb
Platform Capacity - Unrestricted
500lb
Specifications
Swing System
Swing
360degrees
Swing Type
Continuous
Engine
Diesel Engine Type
DEUTZ TD 2.9L Tier 4 Final 67 hp
Dual Fuel Engine Type
Ford MSG425 84hp
Maximum Ground Bearing Pressure
72psi
System Voltage
12V
Operational
Operating Weight
33030lb
Fuel Capacity
31gal
Hydraulic System Fluid Capacity
48gal
Tire Size
15-625 Pnuematic
Performance
Axle Oscillation
0.7ft in
Drive Speed
3.5mph
