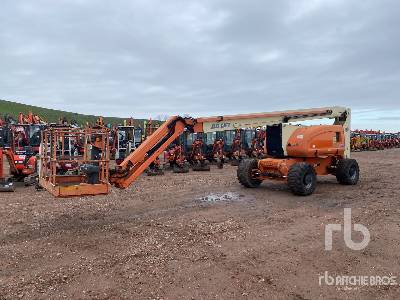

JLG 800A 2WD Boom Lift

JLG 800A 2WD Boom Lift Specs side
JLG 800A 2WD Boom Lift Specs side
JLG 800A 2WD Boom Lift Specs back
JLG 800A 2WD Boom Lift Specs back
JLG 800A 2WD Boom Lift Specs extended
JLG 800A 2WD Boom Lift Specs extended
Units

Dimensions

Dimensions

A

Overall Length

36.91 in

B

Overall Width

8.01 ft in

C

Overall Height - mast lowered

9.85 ft in

D

Wheelbase

10.01 ft in

E

Ground Clearance

11.82 in

Platform

F

Max Platform Height

79.99 ft in

G

Max Horizontal Reach

52.99 ft in


Specifications

Engine

Diesel Engine Type

DEUTZ TD 2.9L Tier 4 Final

Diesel Engine Power

67 hp

Dual Fuel Engine Type

Ford MSG425

Dual Fuel Engine Power

84 hp

Maximum Ground Bearing Pressure

76 psi

Engine Make

2349

Engine Model

F4M2011

Gross Power

64.4 hp

Fuel Type

Diesel

System Voltage

12 V

Operational

Operating Weight

34130 lb

Fuel Capacity

39 gal

Hydraulic System Fluid Capacity

40 gal

Max Speed

3 mph

Tire Size

445/55D x 19.5

Tire Fill/Type

Pneumatic

Performance

Drive Speed

3 mph

Gradeability

30 %

Swing

360 degrees

Swing Type

Continuous

Platform

Max Platform Height

80 ft in

Max Horizontal Reach

53 ft in

Max Platform Weight Capacity

1000.9 lb

Platform Inner Length

96.1 in

Platform Inner Width

35.9 in

Platform Rotation

180 degrees

Platform Capacity - Unrestricted

500 lb

Platform Capacity - Restricted

1000 lb

Dimensions

Wheelbase

10.1 ft in

Platform Dimension A

3 ft in

Platform Dimension B

8 ft in

Up and Over Height

32.1 ft in

Overall Length

37 in

Overall Width

8.1 ft in

Overall Height - mast lowered

9.9 ft in

Turning Radius

19.8 ft in

Ground Clearance

11.9 in
