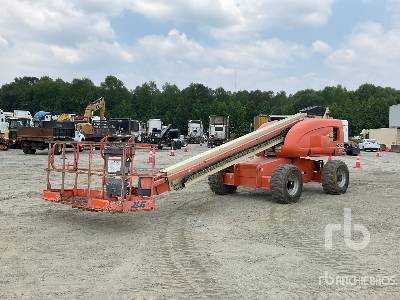

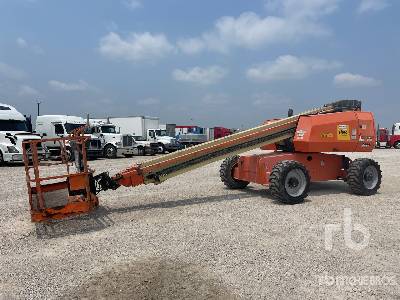

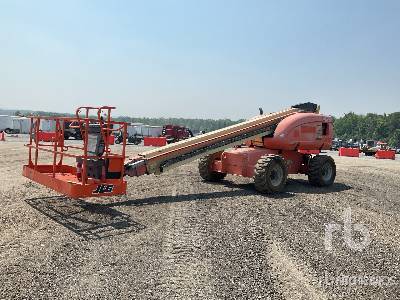

JLG 600S 2WD Boom Lift
Units
Dimensions
Dimensions
A
Overall Length
343in
B
Overall Width
8.2ft in
C
Overall Height - Mast Lowered
8.44ft in
D
Wheelbase
8.08ft in
E
Ground Clearance
11in
Platform Dimension B
8.01ft in
Overall Height
8.2ft in
Turning Radius
19.7ft in
Tailswing Radius
4ft in
Platform Dimension A
2.99ft in
Platform
F
Max Platform Height
60.24ft in
G
Max Horizontal Reach
50.2ft in
Platform Inner Length
96.07in
Platform Inner Width
35.83in
Platform Railing Height
59.68ft in
Platform Rotation
160degrees
Platform Capacity - Unrestricted
600lb
Platform Capacity - Restricted
1000lb
Max Platform Weight Capacity
1000.9lb
Specifications
Engine
Fuel Tank
31gal
Diesel Engine Type
Deutz TD2.9L4 Tier 4 Final
Diesel Engine Power
67hp
Dual Fuel Engine Type
Ford MSG425-DF
Dual Fuel Engine Power
84hp
Maximum Ground Bearing Pressure
78psi
Engine Make
2349
Engine Model
F4M2011
Gross Power
64.4hp
Fuel Type
Diesel
System Voltage
12V
Operational
Operating Weight
21461lb
Fuel Capacity
39.9gal
Hydraulic System Fluid Capacity
34gal
Max Speed
4.3mph
Tire Size
41/181.1 X 22.5
Tire Fill/Type
Lug Tread
Performance
Axle Oscillation
0.7ft in
Swing
360degrees
