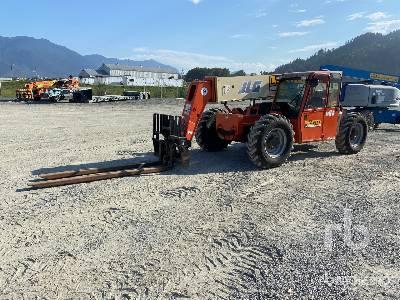

JLG 307 Telescopic Forklift

JLG 307 Telescopic Forklift Specs front
JLG 307 Telescopic Forklift Specs front
JLG 307 Telescopic Forklift Specs side
JLG 307 Telescopic Forklift Specs side
JLG 307 Telescopic Forklift Specs extended
JLG 307 Telescopic Forklift Specs extended
Units

Dimensions

Dimensions

A

Length to Fork Face

13.59 ft in

B

Width Over Tires

7.55 ft in

C

Overall Height

7.71 ft in

D

Wheelbase

9.52 ft in

E

Ground Clearance

18.12 ft in

Lift

F

Max Lift Height

22.64 ft in

G

Max Forward Reach

12.8 ft in


Specifications

Engine

Engine Make

2349

Engine Model

2012

Gross Power

100.5 hp

Operational

Operating Weight

16534.7 lb

Fuel Capacity

27.8 gal

Hydraulic System Fluid Capacity

23 gal

Tire Size

405/70-20

Transmission

Transmission Type

hydrostatic

Number of Forward Gears

2

Number of Reverse Gears

2

Max Speed - forward

19.9 mph

Max Speed - reverse

19.9 mph

Hydraulic

Pump Type

gear

Pump Flow Capacity

24.9 gal/min

Lift

Max Lift Capacity

6613.9 lb

Max Lift Height

22.7 ft in

Max Load at Max Height

5732.1 lb

Max Forward Reach

12.8 ft in

Max Load at Max Reach

2976.3 lb

Dimensions

Length to Fork Face

13.6 ft in

Width Over Tires

7.6 ft in

Overall Height

7.8 ft in

Wheelbase

9.6 ft in

Ground Clearance

18.2 ft in

Turning Radius Outside Tires

14.5 ft in
