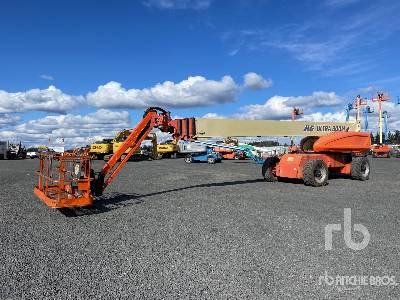

JLG 1350SJP Boom Lift

Boom Lift
Boom Lift
Boom Lift
Boom Lift
Boom Lift
Boom Lift
Units

Dimensions

Dimensions

A

Overall Length

48.1ft in

B

Overall Width

8.2ft in

C

Overall Height - Mast Lowered

10ft in

E

Ground Clearance

0.02in

Transport Length

38.11ft in

Overall Width (Axles Extended)

12.6ft in

Platform Dimension A

3ft in

Platform Dimension B

8ft in

Tailswing Radius

5.6ft in

Platform

F

Max Platform Height

135ft in

G

Max Horizontal Reach

80ft in

Platform Capacity - Restricted

1000lb

Platform Capacity - Unrestricted

500lb


Specifications

Swing System

Swing

360degrees

Swing Type

Continuous

Engine

Diesel Engine Type

DEUTZ TCD2.9L4 Tier 4 Final 74.2 hp

Maximum Ground Bearing Pressure

107psi

System Voltage

12V

Operational

Operating Weight

45000lb

Fuel Capacity

31gal

Hydraulic System Fluid Capacity

55gal

Tire Size

445/500710 Foam-Filled

Performance

Axle Oscillation

1ft in

Drive Speed

3.3mph

Gradeability

45%

Turning Radius - Outside (Axles Extended)

19.4ft in

Turning Radius - Outside (Axles Retracted)

22.6ft in
