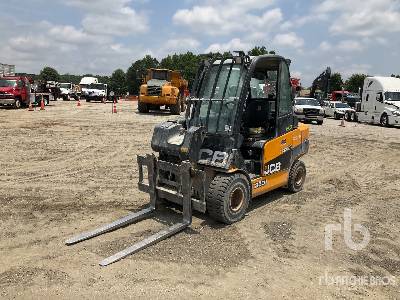

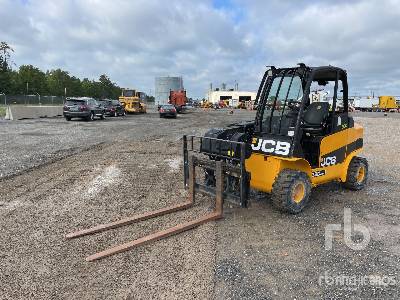

JCB TLT 25HL Telescopic Forklift

JCB TLT 25HL Telescopic Forklift Specs front
JCB TLT 25HL Telescopic Forklift Specs front
JCB TLT 25HL Telescopic Forklift Specs side
JCB TLT 25HL Telescopic Forklift Specs side
JCB TLT 25HL Telescopic Forklift Specs extended
JCB TLT 25HL Telescopic Forklift Specs extended
Units

Dimensions

Dimensions

A

Length to Fork Face

8.62 ft in

B

Width Over Tires

3.86 ft in

C

Overall Height

6.86 ft in

D

Wheelbase

5.58 ft in

E

Ground Clearance

0.38 ft in

Lift

F

Max Lift Height

13.46 ft in

G

Max Forward Reach

7.32 ft in


Specifications

Engine

Number of Cylinders

4

Engine Make

2257

Engine Model

G-3.0 L4

Gross Power

57.7 hp

Power Measured @

2600 rpm

Displacement

181 cu in

Operational

Operating Weight

5383.7 lb

Tire Size

front 7x12, rear 6x9

Transmission

Transmission Type

IT

Max Speed - forward

12.5 mph

Hydraulic

Pump Flow Capacity

18.5 gal/min

Relief Valve Pressure

2465.7 psi

Lift

Max Lift Capacity

5511.6 lb

Max Lift Height

13.5 ft in

Max Forward Reach

7.4 ft in

Dimensions

Length to Fork Face

8.7 ft in

Width Over Tires

3.9 ft in

Overall Height

6.9 ft in

Wheelbase

5.6 ft in

Ground Clearance

0.4 ft in

Turning Radius Outside Tires

8.1 ft in


Compare similar models

Manufacturer / Model

Operating Weight

Max Lift Capacity

Max Forward Reach

Operating Weight

5383.7 lb

Max Lift Capacity

5511.6 lb

Max Forward Reach

7.4 ft in
