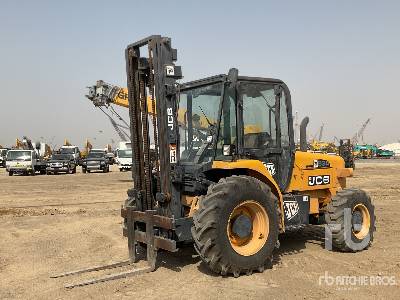

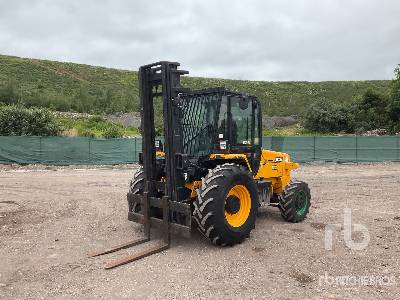

JCB 940 Forklift

Forklift
Forklift
Forklift
Forklift
Forklift
Forklift
Units

Dimensions

Dimensions

A

Length To Fork Face

11.95ft in

B

Overall Width

7.22ft in

C

Overall Height - Mast Lowered

8.4ft in

D

Wheelbase

7.26ft in

E

Ground Clearance

11.82in

F

Height To Top Of Overhead Guard

8.44ft in

G

Max Fork Height

15ft in

Angle Of Departure

53degrees

Mast

H

Mast Tip Forward

18degrees

I

Mast Tip Rear

10degrees

Lower Speed

66.93ft/min

Number Of Mast Sections

3

Load Center

19.69in

Load Capacity

8000lb

Lift Speed

45.28ft/min


Specifications

Tyres

Standard

16.5/85-24

Standard Front

Traction

Tyres Type

Rubber

Electrical System

Alternator

95 Ah

Voltage

12 VV

Battery

120 Ah

Engine

Emissions Certification

TIER 4 FINAL

Fuel

Diesel

Number Of Cylinders

4

Engine Oil Service Interval

500 hours

Engine Make

2257

Engine Model

JCB ECOMAX TCAE-55

Power

74hp

Cooling System

Liquid

Torque

295.1lb ft

Power Measured @

2200rpm

Displacement

268.6cu in

Torque Measured @

1300rpm

Bore

4.1in

Stroke

5.2in

Capacities

Hydraulic Oil Tank

15.9gal

Fuel Tank

23.3gal

Engine Oil

3.2gal

Engine Coolant

4.5gal

Operational

Operating Weight

16534.7lb

Number Of Front Wheels

2

Number Of Rear Wheels

2

Max Speed

18mph

Transmission

Shuttle (Forward-Reverse)

Power shuttle

Gear Type

Manual

Transmission Type

Syncroshuttle

Torque Converter

2.20:1
