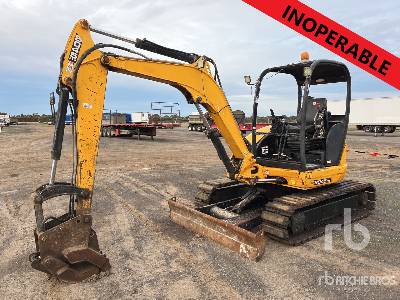

JCB 804 Mini Excavator

JCB 804 Mini Excavator Specs front
JCB 804 Mini Excavator Specs front
JCB 804 Mini Excavator Specs side
JCB 804 Mini Excavator Specs side
JCB 804 Mini Excavator Specs extended
JCB 804 Mini Excavator Specs extended
Units

Dimensions

Boom/Stick Option (HEX) 1

A

Shipping Length of Unit

14.38 ft in

C

Shipping Height of Unit

7.98 ft in

I

Max Cutting Height

15.15 ft in

J

Max Loading Height

11.39 ft in

K

Max Reach Along Ground

17.07 ft in

M

Max Digging Depth

11.63 ft in

Dimensions

B

Width to Outside of Tracks

7.06 ft in

D

Length of Track on Ground

7.22 ft in

E

Ground Clearance

1.2 ft in

G

Height to Top of Cab

8.62 ft in

H

Tail Swing Radius

3.81 ft in

Undercarriage

F

Track Gauge

5.58 ft in

N

Shoe Size

13.78 in


Specifications

Engine

Engine Model

403-15

Gross Power

20.7 hp

Net Power

19.8 hp

Operational

Operating Weight

7729.5 lb

Fuel Capacity

12.7 gal

Hydraulic System Fluid Capacity

18.5 gal

Engine Oil Capacity

1.4 gal

Operating Voltage

12 V

Alternator Supplied Amperage

55 amps

Hydraulic System Relief Valve Pressure

2755.8 psi

Hydraulic Pump Flow Capacity

9.3 gal/min

Undercarriage

Shoe Size

13.8 in

Number of Track Rollers per Side

4

Track Gauge

5.6 ft in

Boom/Stick Option (HEX) 1

Boom/Stick Option (HEX) 1

boom w/ arm 1600mm

Shipping Height of Unit

8 ft in

Shipping Length of Unit

14.4 ft in

Max Digging Depth

11.7 ft in

Max Reach Along Ground

17.1 ft in

Max Cutting Height

15.2 ft in

Max Loading Height

11.4 ft in

Dimensions

Width to Outside of Tracks

7.1 ft in

Height to Top of Cab

8.7 ft in

Ground Clearance

1.2 ft in

Removal Counterweight Clearance

2.6 ft in

Tail Swing Radius

3.9 ft in

Length of Track on Ground

7.3 ft in
