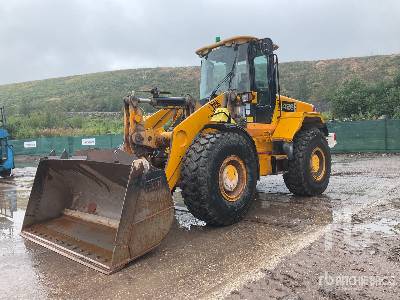

JCB 419S HT HL Wheel Loader

Wheel Loader
Wheel Loader
Wheel Loader
Wheel Loader
Wheel Loader
Wheel Loader
Units

Dimensions

Bucket

G

Dump Clearance At Max Raise

9.84ft in

Bucket Capacity - Heaped

2.1yd3

Bucket Capacity - Struck

1.78yd3

Bucket Width

7.88ft in

Breakout Force

18434.34lb

Dimensions

E

Ground Clearance

1.65ft in

A

Length With Bucket On Ground

22.57ft in

B

Width Over Tires

8.78ft in

C

Height To Top Of Cab

10.47ft in

D

Wheelbase

9.36ft in

F

Hinge Pin - Max Height

12.83ft in

H

Reach At Max Lift And Dump

2.95ft in


Specifications

Engine

Emission Tier Level

EU Stage IV, US EPA Tier 4F

Number Of Cylinders

6

No. Of Valves

4

Engine Model

QSB

Engine Type

Cummins

Net Power

183hp

Air Cleaner

Cyclonic pre-filter with engine fan scavenge system

Gross Power

173hp

Power Measured @

2100rpm

Max Torque

841 Nm

Displacement

408.9cu in

Torque Measured @

1500rpm

Aspiration

Turbo Charged

Fan Drive Type

Hydraulically driven cooling fan

Operational

Def Tank Capacity

6.3gal

Auxiliary Fuel Tank

66.1gal

Full Turn Tipping Load

14422.7lb

Payload

7211.4lb

Operating Weight

23507.9lb

Fuel Capacity

66.1gal

Hydraulic System Fluid Capacity

41gal

Turning Radius

19.2ft in

Operating Voltage

24V

Alternator Supplied Amperage

120amps

Rear Axle Oscillation

9degrees

Articulation Angle

38degrees

Transmission

Transmission Type

6 speed non-lock up converter ZF

Number Of Forward Gears

6

Number Of Reverse Gears

3

Max Speed - Forward

24.9mph

Max Speed - Reverse

20mph

Hydraulic System

Max Operating Pressure

230 bar

Relief Valve Setting

3190psi

Pump Flow Capacity

47.6gal/min

Raise Time

3.9sec

Dump Time

1.6sec

Lower Time

2.4sec

Total Cycle

7.8sec

Pump Type

Variable placement
