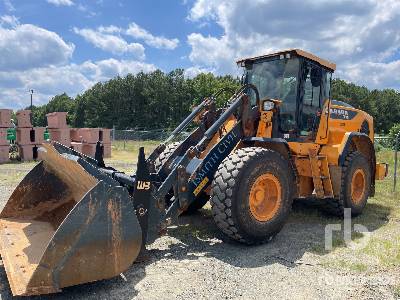

Hyundai HL940 Wheel Loader
Units
Dimensions
Bucket
G
Dump Clearance At Max Raise
9.14ft in
Breakout Force
24800lb
Bucket Capacity - Heaped
3.01yd3
Bucket Capacity - Struck
2.62yd3
Bucket Width
8.54ft in
Dimensions
E
Ground Clearance
1.37ft in
A
Length With Bucket On Ground
24.38ft in
C
Height To Top Of Cab
10.83ft in
D
Wheelbase
9.68ft in
H
Reach At Max Lift And Dump
5.02ft in
Specifications
Engine
Number Of Cylinders
6
Engine Make
CUMMINS
Engine Model
QSB6.7
Net Power
156hp
Air Cleaner
Dry, Two stage dual elements
Gross Power
158hp
Torque
622lb ft
Power Measured @
2100rpm
Displacement
408.9cu in
Torque Measured @
1500rpm
Aspiration
Turbocharged
Bore
4.3in
Stroke
4.9in
Operational
Operating Weight
28880.6lb
Fuel Capacity
58.2gal
Hydraulic System Fluid Capacity
34.4gal
Cooling System Fluid Capacity
9gal
Transmission Fluid Capacity
7.2gal
Front Axle/Diff Fluid Capacity
6.4gal
Rear Axle/Diff Fluid Capacity
6.4gal
Operating Voltage
24V
Alternator Supplied Amperage
95amps
Rear Axle Oscillation
24degrees
Tire Size
20.5 R25
Transmission
Transmission Type
Full automatic power shift
Number Of Forward Gears
4
Number Of Reverse Gears
3
Max Speed - Forward
24.9mph
Max Speed - Reverse
26.1mph
Hydraulic System
Pump Flow Capacity
39gal/min
Raise Time
5.5sec
Dump Time
1.1sec
Lower Time
3sec
Pump Type
Variable displacement piston pump
Relief Valve Pressure
2987psi
