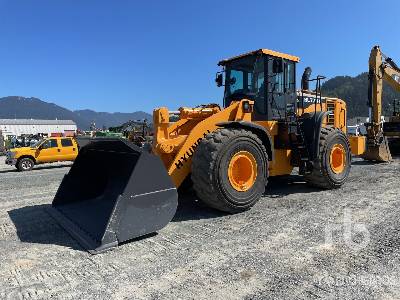

Hyundai HL760-9A Wheel Loader

Wheel Loader
Wheel Loader
Wheel Loader
Wheel Loader
Wheel Loader
Wheel Loader
Units

Dimensions

Bucket

G

Dump Clearance at Max Raise

9.75ft in

Dimensions

A

Length with Bucket on Ground

26.58ft in

B

Width Over Tires

9.09ft in

C

Height to Top of Cab

11.32ft in

D

Wheelbase

10.83ft in

E

Ground Clearance

1.38ft in

F

Hinge Pin - Max Height

18.3ft in

H

Reach at Max Lift and Dump

4.01ft in


Specifications

Engine

Emissions Certification

Tier 4 interim

Number of Cylinders

6

Max torque ISO TR14396

700lb ft

Engine Make

CUMMINS

Engine Model

QSB6.7

Engine Type

Watercooled

Net Power

222.7hp

Air cleaner

Dry, two stage dual elements

Gross Power

225.3hp

Power Measured @

2100rpm

Displacement

408.9cu in

Torque Measured @

1500rpm

Fuel Type

Diesel

Aspiration

Turbocharged

Bore

4.3in

Stroke

4.9in

Operational

Operating Weight

40454.9lb

Fuel Capacity

86.4gal

Hydraulic System Fluid Capacity

47.1gal

Engine Oil Fluid Capacity

4.8gal

Cooling System Fluid Capacity

11.4gal

Transmission Fluid Capacity

8.5gal

Front Axle/Diff Fluid Capacity

9.3gal

Rear Axle/Diff Fluid Capacity

9.3gal

Static Tipping Weight

31526.2lb

Operating Voltage

24V

Alternator Supplied Amperage

70amps

Rear Axle Oscillation

24degrees

Tire Size

23.5-25, 20 PR, L3

Transmission

Transmission Type

Full automatic power shif

Number of Forward Gears

4

Number of Reverse Gears

3

Max Speed - Forward

23.9mph

Max Speed - Reverse

25.2mph

Hydraulic System

Pump Type

Load sensing hydraulic syste

Pump Flow Capacity

61.6gal/min

Raise Time

5.8sec

Dump Time

1.2sec

Lower Time

3.1sec

Bucket

Breakout Force

35780.6lb

Dump Clearance at Max Raise

9.8ft in

Bucket Width

9.6ft in

Bucket Capacity - heaped

4.4yd3

Bucket Capacity - struck

3.7yd3

Dimensions

Length with Bucket on Ground

26.6ft in

Width Over Tires

9.1ft in

Height to Top of Cab

11.4ft in

Ground Clearance

1.4ft in

Wheelbase

10.9ft in

Hinge Pin - Max Height

18.3ft in

Reach at Max Lift and Dump

4.1ft in
