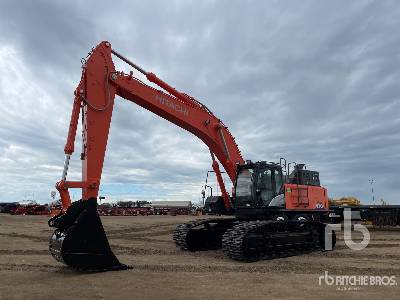

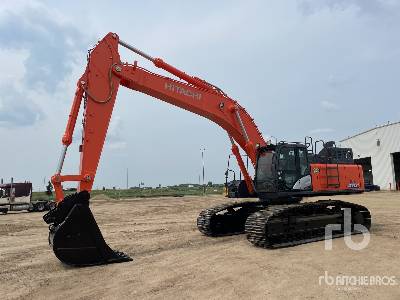

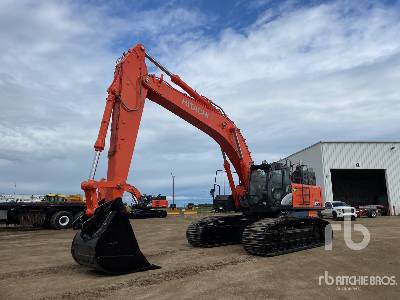

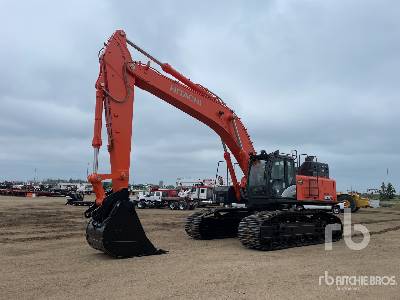

Hitachi ZX470LC-6 Hydraulic Excavator
Dimensions
Boom/Stick Option (Hex) 1
Shipping Length Of Unit
39.7ft in
Shipping Height Of Unit
11.82ft in
Max Cutting Height
33.63ft in
Max Loading Height
23.07ft in
Max Reach Along Ground
36.65ft in
Max Vertical Wall Digging Depth
17.29ft in
Max Digging Depth
23.89ft in
Bucket Digging Force - Iso
64070.55lb
Arm Digging Force - Iso
58225.52lb
Arm Digging Force - Sae
56651.85lb
Boom/Stick Option (Hex) 1
Arm Length - 2.9 m (9 ft 6 in)
Bucket Digging Force - Sae
57101.47lb
Boom/Stick Option (Hex) 2
Shipping Length Of Unit
39.41ft in
Max Cutting Height
35.7ft in
Shipping Height Of Unit
11.42ft in
Max Loading Height
24.05ft in
Max Reach Along Ground
34.81ft in
Max Vertical Wall Digging Depth
16.47ft in
Max Digging Depth
20.44ft in
Arm Digging Force - Iso
57551.09lb
Boom/Stick Option (Hex) 2
Arm Length - 2.9 m (9 ft 6 in) with 6.3 m (20 ft 7 in) Mass-Excavating Boom
Bucket Digging Force - Sae
57775.9lb
Arm Digging Force - Sae
55977.43lb
Bucket Digging Force - Iso
64070.55lb
Boom/Stick Option (Hex) 3
Shipping Length Of Unit
39.41ft in
Max Cutting Height
36.29ft in
Max Loading Height
25.1ft in
Shipping Height Of Unit
11.49ft in
Max Reach Along Ground
38.85ft in
Max Vertical Wall Digging Depth
21.63ft in
Max Digging Depth
25.5ft in
Bucket Digging Force - Sae
57551.09lb
Arm Digging Force - Iso
49907.59lb
Boom/Stick Option (Hex) 3
Arm Length - 3.4 m (11 ft 2 in)
Arm Digging Force - Sae
48333.92lb
Bucket Digging Force - Iso
64295.36lb
Boom/Stick Option (Hex) 4
Shipping Length Of Unit
39.38ft in
Shipping Height Of Unit
14.93ft in
Max Cutting Height
36.62ft in
Max Loading Height
25.5ft in
Max Reach Along Ground
40.29ft in
Max Digging Depth
27.14ft in
Max Vertical Wall Dig Depth
22.91ft in
Arm Digging Force - Iso
45186.6lb
Arm Digging Force - Sae
44062.55lb
Bucket Digging Force - Sae
57551.09lb
Bucket Digging Force - Iso
64295.36lb
Boom/Stick Option (Hex) 4
Arm Length - 3.9 m (12 ft 10 in)
Boom/Stick Option (Hex) 5
Shipping Length Of Unit
37.14ft in
Shipping Height Of Unit
12.28ft in
Max Cutting Height
38.49ft in
Max Loading Height
28.45ft in
Max Reach Along Ground
43.12ft in
Max Digging Depth
29.89ft in
Boom/Stick Option (Hex) 5
Arm Length - 4.9 m (16 ft 1 in)
Max Vertical Wall Dig Depth
27.63ft in
Arm Digging Force - Iso
39791.18lb
Bucket Digging Force - Iso
53504.53lb
Bucket Digging Force - Sae
47884.31lb
Arm Digging Force - Sae
39341.57lb
Dimensions
Ground Clearance
2.43ft in
Height To Top Of Cab
10.93ft in
Width To Outside Of Tracks
11.95ft in
Length Of Track On Ground
39.7ft in
Tail Swing Radius
12.05ft in
Removal Counterweight Clearance
4.47ft in
Undercarriage
Ground Pressure
10.5psi
Max Travel Speed
3.42mph
Drawbar Pull
73937lb
Number Of Shoes Per Side
53
Number Of Track Rollers Per Side
9
Number Of Carrier Rollers Per Side
3
Specifications
Electrical System
Battery Capacity
1000 CCA
Alternator Rating
100 amp
Batteries
2 x 12 V
Work Lights
5 halogen
Cylinders
Bore (Boom)
6.7in
Stroke (Boom)
62.6in
Rod Diameter (Boom)
4.6in
Bore (Arm)
7.5in
Stroke (Arm)
76.4in
Rod Diameter (Arm)
5.2in
Bore (Bucket)
6.7in
Stroke (Bucket)
52.2in
Rod Diameter (Bucket)
4.8in
Engine
Emissions Level
EPA Final Tier 4 / EU Stage IV
Number Of Cylinders
6
Off-Level Capacity
70%
Engine Model
Isuzu 6UZ1
Net Power
362hp
Cooling System
Cool-on-demand, hydraulic-driven, suction-type fan with remote-mounted drive
Power Measured @
2000rpm
Displacement
600.5cu in
Aspiration
Turbocharged, air-to-air charge-air cooler
Capacities
Engine Oil With Filter
10.9gal
Swing Drive
1.8gal
Fuel Tank
178.4gal
Hydraulic Tank
81.9gal
Diesel Exhaust Fluid (Def) Tank
25.1gal
Cooling System
16.5gal
Hydraulic System
134.8gal
Operational
Operating Weight
110804.4lb
Swing Mechanism
Swing Speed
9.5rpm
Swing Torque
109159.2lb ft
Buckets
Minimum Bucket Capacity
1.9yd3
Maximum Bucket Capacity
4.2yd3
Hydraulic System
Main Pump - Maximum Flow
105.7gal/min
Hydraulic System Type
Open center, load sensing
Main Pump Type
2 variable-displacement pumps
Implement - Operating Pressure
4626.8psi
Travel - Operating Pressure
5119.9psi
Swing - Operating Pressure
4119.1psi
Power Boost - Operating Pressure
5119.9psi
Controls
Pilot levers, short-stroke, low-effort hydraulic pilot controls with shutoff lever
