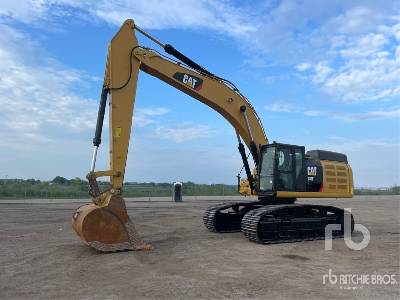

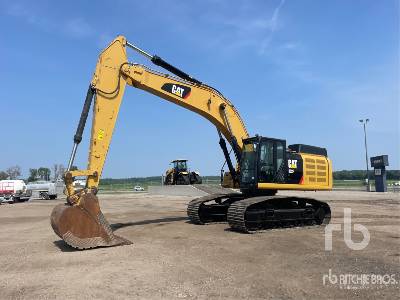

Caterpillar 352F Hydraulic Excavator
Units
Specifications
Engine
Displacement
763cu in
Bore
5.2in
Stroke
6.2in
Net Power - Sae J1349
417hp
Gross Power - Sae J1995
432hp
Engine Model
Cat C13 ACERT
Net Flywheel Power
396hp
Operational
Operating Weight
115700lb
Swing Mechanism
Swing Speed
8.7rpm
Swing Torque
109500lb ft
Weights
Maximum Weight
115700lb
Hydraulic System
Pilot System - Maximum Flow
7.1 gal/min
Pilot System - Maximum Pressure
598 psi
Maximum Pressure - Travel
5076 psi
Maximum Pressure - Swing
3989 psi
Swing System - Maximum Flow
102 gal/min
Boom Cylinder - Bore
6.7in
Boom Cylinder - Stroke
60in
Stick Cylinder - Bore
7.5in
Stick Cylinder - Stroke
69.3in
Main System - Maximum Flow - Total
203 gal/min
Maximum Pressure - Equipment
5076 psi
Maximum Pressure - Equipment - Lift Mode
5512 psi
Tb Family Bucket Cylinder - Stroke
53.4in
Tb Family Bucket Cylinder - Bore
6.3in
Service Refill Capacities
Cooling System
13.2gal
Def Tank
11gal
Final Drive - Each
4gal
Hydraulic Tank
107.5gal
Hydraulic System - Including Tank
150.6gal
Fuel Tank Capacity
190gal
Swing Drive - Each
2.6gal
Engine Oil - With Filter
10gal
Standards
Cab - Rops
ISO 12117-2
Brakes
ISO 10265
Cab/Fogs
SAE J1356
Sound Performance
Operator Noise (Closed) - Iso 6396
69 dB(A)
Spectator Noise - Iso 6395
106 dB(A)
Track
Number Of Shoes - Each Side - Long Variable Gauge Undercarriage
52
Number Of Track Rollers - Each Side - Long Variable Gauge Undercarriage
9
Number Of Carrier Rollers - Each Side - Long Variable Gauge Undercarriage
3
Drive
Maximum Travel Speed
2.9mph
Maximum Drawbar Pull
75300lb
