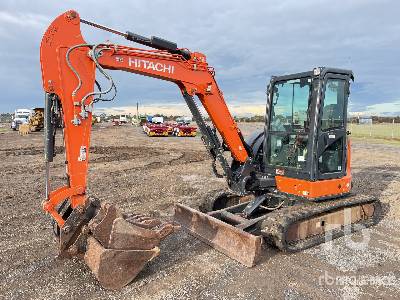

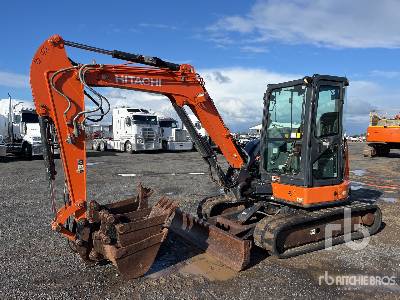

Hitachi ZX35U-2 Mini Excavator

Hitachi ZX35U-2 Mini Excavator Specs front
Hitachi ZX35U-2 Mini Excavator Specs front
Hitachi ZX35U-2 Mini Excavator Specs side
Hitachi ZX35U-2 Mini Excavator Specs side
Hitachi ZX35U-2 Mini Excavator Specs extended
Hitachi ZX35U-2 Mini Excavator Specs extended
Units

Dimensions

Boom/Stick Option (HEX) 1

A

Shipping Length of Unit

15.26 ft in

C

Shipping Height of Unit

8.08 ft in

I

Max Cutting Height

16.08 ft in

J

Max Loading Height

11.46 ft in

L

Max Vertical Wall Digging Depth

8.76 ft in

M

Max Digging Depth

10.04 ft in

Boom/Stick Option (HEX) 2

A

Shipping Length of Unit

15.69 ft in

C

Shipping Height of Unit

8.08 ft in

I

Max Cutting Height

16.44 ft in

J

Max Loading Height

11.82 ft in

L

Max Vertical Wall Digging Depth

9.91 ft in

M

Max Digging Depth

11.36 ft in

Dimensions

B

Width to Outside of Tracks

5.71 ft in

D

Length of Track on Ground

5.42 ft in

E

Ground Clearance

0.96 ft in

G

Height to Top of Cab

8.08 ft in

H

Tail Swing Radius

2.86 ft in

Undercarriage

F

Track Gauge

4.73 ft in

N

Shoe Size

11.82 in


Specifications

Engine

Number of Cylinders

3

Engine Make

2348

Engine Model

3TNV88

Net Power

29.9 hp

Power Measured @

2500 rpm

Displacement

100.3 cu in

Max Torque

77.5 lb ft

Torque Measured @

1500 rpm

Operational

Operating Weight

7672.1 lb

Fuel Capacity

10.6 gal

Cooling System Fluid Capacity

1.6 gal

Hydraulic System Fluid Capacity

15.4 gal

Engine Oil Capacity

2 gal

Operating Voltage

12 V

Hydraulic System Relief Valve Pressure

3553.5 psi

Hydraulic Pump Flow Capacity

21.2 gal/min

Swing Mechanism

Swing Speed

9.3 rpm

Undercarriage

Shoe Size

11.9 in

Number of Carrier Rollers per Side

1

Number of Track Rollers per Side

4

Ground Pressure

4.5 psi

Max Travel Speed

2.8 mph

Track Gauge

4.8 ft in

Buckets

Reference Bucket Capacity

0.2 yd3

Boom/Stick Option (HEX) 1

Boom/Stick Option (HEX) 1

Boom 2470mm/Stick 1320mm

Shipping Height of Unit

8.1 ft in

Shipping Length of Unit

15.3 ft in

Max Digging Depth

10.1 ft in

Max Cutting Height

16.1 ft in

Max Loading Height

11.5 ft in

Max Vertical Wall Digging Depth

8.8 ft in

Boom/Stick Option (HEX) 2

Boom/Stick Option (HEX) 2

Boom 2470mm/Stick 1720mm

Shipping Height of Unit

8.1 ft in

Shipping Length of Unit

15.7 ft in

Max Digging Depth

11.4 ft in

Max Cutting Height

16.5 ft in

Max Loading Height

11.9 ft in

Max Vertical Wall Digging Depth

10 ft in

Dimensions

Width to Outside of Tracks

5.8 ft in

Height to Top of Cab

8.1 ft in

Ground Clearance

1 ft in

Removal Counterweight Clearance

1.9 ft in

Tail Swing Radius

2.9 ft in

Length of Track on Ground

5.5 ft in
