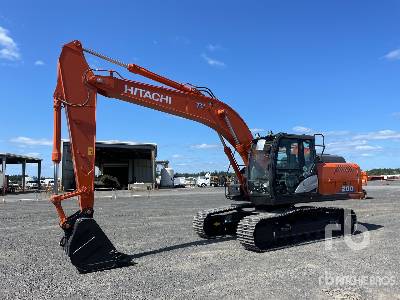

Hitachi ZX200 Hydraulic Excavator

Hydraulic Excavator
Hydraulic Excavator
Hydraulic Excavator
Hydraulic Excavator
Hydraulic Excavator
Hydraulic Excavator
Units

Dimensions

Boom/Stick Option (Hex) 1

A

Shipping Length Of Unit

31.57ft in

C

Shipping Height Of Unit

10.27ft in

I

Max Cutting Height

30.09ft in

J

Max Loading Height

20.97ft in

K

Max Reach Along Ground

29.79ft in

L

Max Vertical Wall Digging Depth

16.87ft in

M

Max Digging Depth

19.62ft in

Boom/Stick Option (Hex) 1

boom 5680mm w/ stick 2220mm

Boom/Stick Option (Hex) 2

A

Shipping Length Of Unit

31.17ft in

I

Max Cutting Height

31.5ft in

C

Shipping Height Of Unit

9.75ft in

J

Max Loading Height

22.25ft in

K

Max Reach Along Ground

31.99ft in

L

Max Vertical Wall Digging Depth

19.85ft in

M

Max Digging Depth

21.89ft in

Boom/Stick Option (Hex) 2

boom 5680mm w/ stick 2910mm

Boom/Stick Option (Hex) 3

A

Shipping Length Of Unit

31.04ft in

I

Max Cutting Height

33.54ft in

J

Max Loading Height

24.32ft in

C

Shipping Height Of Unit

11.65ft in

K

Max Reach Along Ground

36.42ft in

L

Max Vertical Wall Digging Depth

24.74ft in

M

Max Digging Depth

26.78ft in

Boom/Stick Option (Hex) 3

boom 5680mm w/ stick 4410mm

Dimensions

E

Ground Clearance

1.48ft in

G

Height To Top Of Cab

9.68ft in

B

Width To Outside Of Tracks

9.19ft in

D

Length Of Track On Ground

11.06ft in

H

Tail Swing Radius

9.03ft in

Removal Counterweight Clearance

3.38ft in

Undercarriage

F

Track Gauge

7.22ft in

N

Shoe Size

23.63in

Number Of Track Rollers Per Side

7

Number Of Carrier Rollers Per Side

2

Max Travel Speed

3.42mph

Ground Pressure

6.24psi

Number Of Shoes Per Side

46


Specifications

Engine

Number Of Cylinders

6

Engine Make

2353

Engine Model

AA-6BGIT

Net Power

147hp

Power Measured @

2100rpm

Max Torque

405.7lb ft

Displacement

396.3cu in

Aspiration

turbocharged, intercooled

Torque Measured @

1600rpm

Operational

Operating Weight

42769.7lb

Fuel Capacity

95.2gal

Cooling System Fluid Capacity

6.1gal

Hydraulic System Fluid Capacity

52.9gal

Operating Voltage

24V

Engine Oil Capacity

6.7gal

Swing Drive Fluid Capacity

1.7gal

Alternator Supplied Amperage

50amps

Hydraulic System Relief Valve Pressure

4980psi

Hydraulic Pump Flow Capacity

102.5gal/min

Swing Mechanism

Swing Speed

13.3rpm

Buckets

Reference Bucket Capacity

1.1yd3

Minimum Bucket Capacity

0.7yd3

Maximum Bucket Capacity

1.2yd3
